Product Overview:

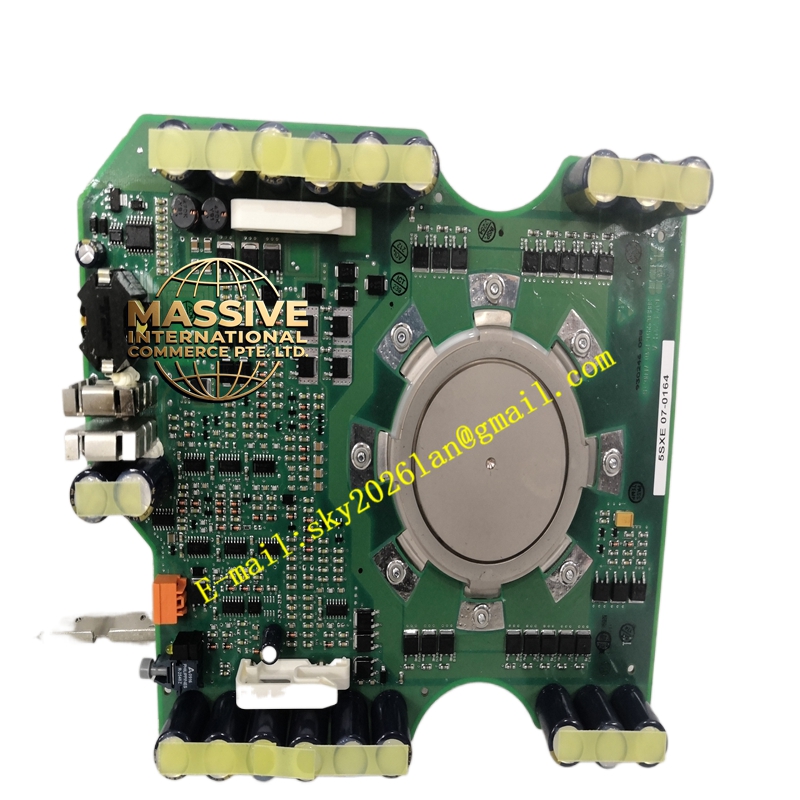

The ABB 5SHX1060H0003 is a high-performance Reverse Conducting Integrated Gate-Commutated Thyristor (IGCT) module. It combines the high blocking voltage and low conduction loss of a GTO with the high-speed switching capabilities of an IGBT. This module is specifically engineered for high-voltage, high-current power electronics applications requiring reliable and efficient switching.

Request Quote
Category: SKU: ABB 5SHX1060H0003

Description

ABB 5SHX1060H0003

Technical Specifications:

  • Device Type: Reverse Conducting IGCT (RC-IGCT).
  • Voltage Rating: 4500 V (High-voltage blocking capability).
  • Current Rating: 4000 A (High continuous current capacity).
  • Switching Speed: Extremely fast turn-on time of approximately 200 ns.
  • Trigger Interface: Optical fiber transmission for control signals.
  • Power Supply: 24 VDC for the Gate Supply Unit (GUSP).

Functional Features:

  • Integrated Design: Incorporates the GCT chip, anti-parallel diode, and gate drive circuitry into a single compact package, minimizing stray inductance.
  • Low Switching Losses: Optimized for high-frequency switching applications with minimal energy dissipation during transitions.
  • High Reliability: Features robust reverse conduction capability and high surge current tolerance.
  • Precision Control: Optical triggering ensures complete electrical isolation and high noise immunity.

Application Scenarios:

  • Medium and high-voltage industrial variable frequency drives (e.g., ABB ACS series).
  • Wind power converters and solar inverters for renewable energy integration.
  • Modular Multilevel Converters (MMC) in flexible HVDC transmission systems.
  • Traction drives for rail transit and marine propulsion systems.

Performance Parameters:

  • Operating Temperature: 0°C to 60°C ambient.
  • Humidity Tolerance: 5% to 95% non-condensing.
  • Weight: Approximately 2.64 kg.
  • Thermal Management: Compact structure with optimized heat dissipation paths.

Material Composition & Structural Characteristics:

  • Enclosure: Ruggedized, press-pack housing designed for low-inductance connections.
  • Semiconductor: Advanced silicon wafer with integrated PN junctions forming reverse diodes.
  • Terminals: High-current copper contacts with silver plating for minimal contact resistance.
  • Optical Port: Integrated fiber optic receiver for precise gate pulse delivery.

Working Principle:
The IGCT operates by utilizing a hard-driven gate turn-off mechanism. When a high-current optical pulse is received, the integrated gate drive forces the thyristor to turn on rapidly. To turn off, the gate extracts carriers at an extremely high rate, forcing the current to commutate to the anti-parallel diode. The reverse conducting structure allows bidirectional current flow within a single device, eliminating the need for a separate series diode.

Installation Requirements:

  • Press-Pack Mounting: Requires uniform, high-pressure clamping force across the entire device surface to ensure thermal and electrical contact.
  • Optical Connection: Carefully connect the optical fibers to the gate unit, ensuring no sharp bends that could cause signal attenuation.
  • Cooling: Must be integrated into a liquid or forced-air cooling system with adequate flow rate.
  • Grounding: Strict single-point grounding for the gate supply unit to prevent ground loop interference.

Usage Precautions:

  • Electrostatic Discharge (ESD): The optical gate unit is highly sensitive to ESD; always use grounded wrist straps during handling.
  • Clamping Force: Never exceed the maximum specified clamping pressure, as it can fracture the internal silicon wafer.
  • Fiber Optic Care: Keep optical connectors clean and free from dust; use approved cleaning tools.
  • Snubber Circuit: Ensure the external snubber circuit is correctly sized to absorb turn-off energy and limit dv/dt.
