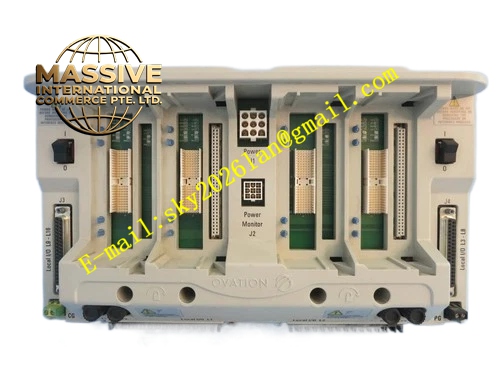

Emerson 5X00062G01
Technical Specifications
- Compatible system: Emerson Ovation DCS rack assembly
- Slot quantity: Multiple standard slots for controller and I/O modules
- Power distribution: Multi-channel DC power traces for rack modules
- Communication bus: Ovation dedicated internal control bus
- Operating ambient temperature: 0℃ ~ 60℃
- Storage temperature: -40℃ ~ 85℃
- Relative humidity: 5% ~ 95%, non-condensing
- Connector type: Gold-plated female connectors for plug-in modules
- Integrated signal and power routing traces
Functional Features Stable power distribution traces transmit DC power from rack power module to every module slot. Impedance-controlled signal traces realize high-speed bidirectional data exchange between controller and I/O modules. Gold-plated slot connectors maintain consistent electrical contact under cabinet vibration. Independent isolation routing separates power traces and signal traces to reduce electromagnetic crosstalk. Fixed mechanical positioning structure ensures all plug-in modules align accurately when inserted. Built-in ground bus traces provide continuous protective grounding for all installed modules.
Application Scenarios Ovation DCS control cabinets deployed in thermal power plants, pulp and paper factories, water treatment facilities and chemical processing plants. It acts as the core backplane for main control racks and remote I/O racks of Ovation distributed control system.
Performance Parameters Power distribution traces maintain stable voltage output under full rack load within the whole working temperature range. Signal traces keep low signal attenuation and low distortion for high-speed DCS bus communication. Gold-plated connectors sustain reliable electrical contact after repeated module plugging and vibration cycles. The PCB structure resists thermal deformation caused by temperature fluctuation inside control cabinet.
Material Composition Main circuit substrate uses multi-layer flame-retardant glass fiber epoxy PCB. Slot connectors adopt gold-plated copper alloy pins. Power and signal traces are electrolytic copper with anti-oxidation plating. Reinforcement brackets use coated high-strength steel alloy. Terminal blocks are flame-retardant PA plastic with nickel-plated copper terminals.
Structural Features Flat rectangular rack-mounted PCB assembly. Multiple module slots arranged in a single row on front side. Each slot has integrated gold-plated female connector for plug-in cards. Rear side contains power input terminals, system ground terminals and bus extension ports. Metal reinforcement brackets fix the PCB onto rack frame to prevent bending deformation.
Working Principle DC power from rack power supply module flows into backplane power terminals, then distributes to each module slot through internal power traces. When controller and I/O modules insert into corresponding slots, modules obtain working power and connect to internal DCS bus. Control commands and field measurement data transmit between controller and I/O modules through dedicated signal traces on backplane. The built-in ground traces connect all modules to cabinet protective ground for noise suppression.
Installation Requirements Cut off all rack power before backplane installation. Fix backplane assembly onto Ovation rack frame with standard fastening screws. Connect rack power cables and protective earth wire to corresponding rear terminals. Verify no metal debris or dust inside every slot before inserting modules. Confirm all grounding connections achieve low resistance to cabinet ground bus.
Precautions for Use Do not touch gold-plated connector pins by bare hands. Use dry compressed air to remove accumulated dust periodically. Never insert damaged or bent modules into backplane slots. Disconnect all power supply before maintenance work. Inspect connector contact status and screw tightness during regular cabinet inspection.
