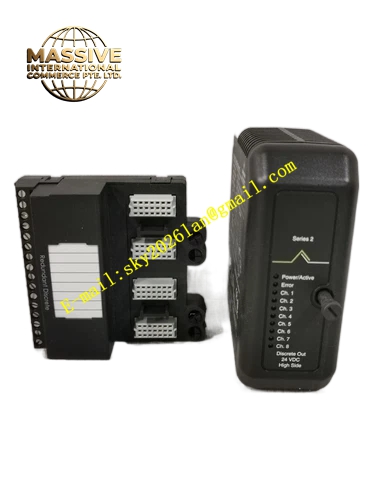

Emerson KJ3201X1-EA1
Technical Specifications
- Signal Type: Discrete digital safety input signal
- Safety Integrity Level: SIL3 certified
- Channel-level self-diagnosis for wire break and short circuit
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non-condensing
- Mounting Form: DeltaV SIS rack plug-in card
- Communication Interface: SIS rack backplane bus
- Protection Grade: IP20
Functional Features Receive discrete safety on-off signals from field emergency stop buttons, safety limit switches and interlock sensors via matched terminal base. Convert field contact signal into digital signal and transmit to SIS safety controller through backplane bus. Channel-wise self-diagnosis detects wire break, short circuit and internal circuit fault for each input channel. Front panel LED indicators display channel signal status and module fault status. Safety hardware design meets SIL3 safety integrity requirement. Hot swap mechanical structure supports module replacement under permitted maintenance conditions.
Application Scenarios DeltaV SIS safety control cabinets in chemical plants, oil refineries and natural gas processing facilities. It collects status signals of emergency stop buttons, safety limit switches and fire gas sensors for emergency shutdown safety loops.
Performance Parameters Signal acquisition circuit reads field discrete safety signal accurately. Channel self-diagnosis circuit detects wire break and short circuit fault instantly. Backplane bus realizes reliable high-speed data transmission to SIS safety controller. Module maintains stable continuous operation under rated working temperature range. Safety hardware meets SIL3 safety integrity requirement for safety instrumented loops.
Material Composition Flame-retardant black engineering plastic front housing with LED indicators. Multi-layer flame-retardant glass-fiber epoxy printed circuit board. Signal acquisition chips, fault diagnosis chips and backplane communication chips. Gold-plated copper alloy backplane connector with anti-oxidation coating. High-temperature resistant capacitors and signal isolation components.
Structural Features Compact plug-in card size matching standard DeltaV SIS rack slot dimension. Front panel equipped with channel status LED indicators and module fault LED indicator. Built-in guide rails and spring mechanical latch fix the module firmly inside SIS rack and resist cabinet vibration. Rear gold-plated multi-pin connector completes electrical connection with DeltaV SIS rack backplane. Bottom connector mates with matched SIS terminal base. Shell is equipped with large-area heat dissipation slots to realize natural convection cooling inside closed safety cabinet.
Working Principle Field safety discrete signals pass through SIS terminal base and transmit to KJ3201X1-EA1 digital input module. Signal acquisition circuit samples field on-off signal for each channel. Channel diagnosis circuit detects wire break and short circuit condition of each signal loop. The module converts signal status and fault information into digital data and sends data to SIS safety controller through rack backplane bus. Front panel LED lights display real-time signal status of each channel and module fault state. Self-diagnosis circuit continuously monitors internal hardware state of module and uploads fault alarm to SIS controller once fault occurs.
Installation Requirements Mount matched SIS terminal base on DIN rail inside safety cabinet first. Insert KJ3201X1-EA1 module along rack guide rail into designated DeltaV SIS rack slot and fully lock mechanical latch. Ensure reliable electrical connection between module bottom connector and terminal base. Reserve sufficient air circulation space around module, do not block heat dissipation slots on module shell. Complete hardware identification and channel parameter configuration in DeltaV engineering workstation after hardware installation.
Precautions for Use Carry out anti-static protective measures during module handling; bare hands shall not directly touch gold-plated connector pins. Cut off field loop power before wiring modification work. Verify channel signal reading after module replacement. Check module status and channel fault information in DeltaV operator station regularly. Do not disassemble module outer housing; internal safety circuit components have no on-site maintainable spare parts.
