Description

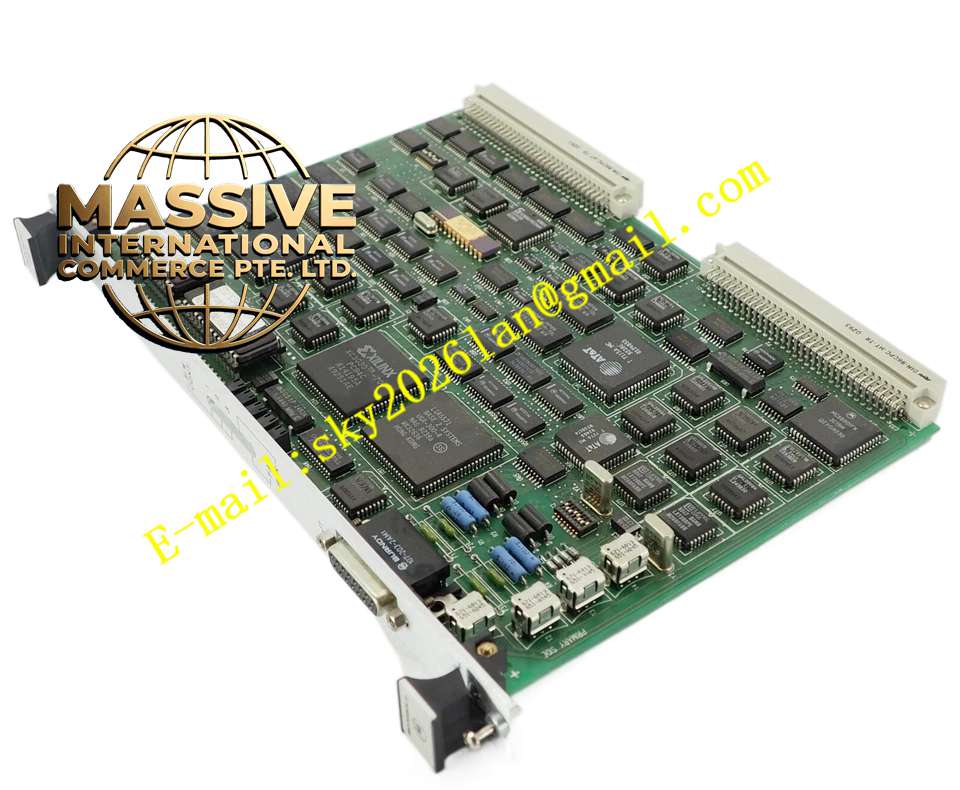

Motorola MVME167P-24SE
Technical Specifications:
- Brand: Motorola
- Model: MVME167P-24SE
- Processor: PowerPC 750FX, 800MHz, with 512KB L2 Cache
- Memory: Standard 256MB SDRAM (supports up to 512MB) with ECC protection
- Storage: 16MB Flash, with optional 2.5″ IDE hard drive or CompactFlash card
- I/O Interfaces: Dual Gigabit Ethernet, dual RS-232, single RS-422/485, parallel port, USB 2.0, and PS/2
- Expansion: One PMC expansion slot and one P2020 bus expansion interface
- Display: Integrated graphics controller with a VGA port (supports up to 1600×1200 resolution)
Functional Features:
- High-Performance Computing: The 800MHz PowerPC processor provides superior performance to meet complex control algorithm requirements.
- Diverse Communication: Rich I/O interfaces facilitate seamless connection with various external devices and networks.
- High-Reliability Design: ECC memory protection and wide-temperature operating ranges ensure system stability in harsh environments.
- Flexible Expansion: Supports PMC and P2020 expansion slots for customizable I/O module configurations.
- Integrated Graphics: Built-in graphics controller simplifies system integration and reduces overall costs.
Application Scenarios:
Industrial automation (PLC control, robotics, production line monitoring), traffic control (railway automation, avionics), medical equipment (imaging, lab automation), and process control (chemical, petroleum, and power generation).
Performance Parameters:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Power Consumption: Typical 20W
Material Composition:
Constructed with industrial-grade high-quality electronic components and multi-layer high-density printed circuit boards (PCBs), equipped with professional heat dissipation hardware.
Structural Characteristics:
Standard industrial single-board computer form factor with front-panel standard I/O interfaces and rear PMC expansion and power interfaces.
Working Principle:
The 800MHz PowerPC processor runs a real-time operating system to receive data from sensors and networks, processes internal logic, and outputs control commands via Ethernet or serial ports to drive actuators.
Installation Requirements:
Must be securely mounted in a standard industrial chassis or control cabinet with stable +5V, +3.3V, and +12V power inputs and properly connected peripherals.
Precautions for Use:
Ensure the operating environment is dry with relative humidity below 95% and no condensation. Adequate ventilation is required to dissipate the 20W heat load.
