Description

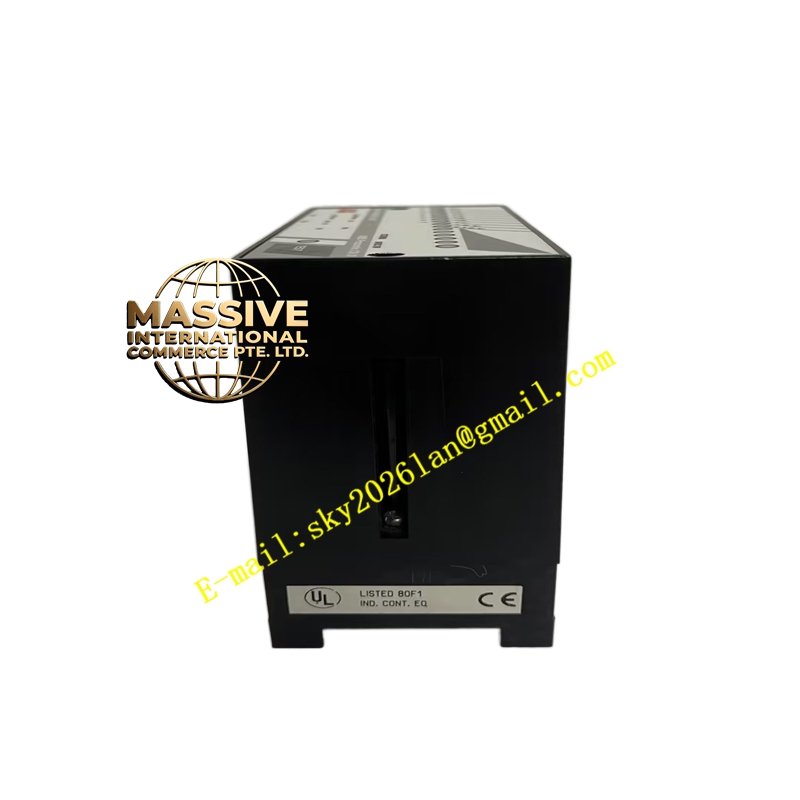

ABB ICSI16E1
Technical Specifications:
- I/O Count: 16 channels (configurable as inputs, outputs, or mixed).
- Voltage Rating: 24 VDC typical.
- Current Rating: Suitable for standard industrial loads.
- Response Time: Fast switching for high-speed applications.
Functional Features:
- Channel Expansion: Adds 16 additional digital points to the system.
- Status Indication: Per-channel LEDs for local troubleshooting.
- Diagnostics: Short circuit, open wire, and overload protection.
- Hot-Swap Support: Allows replacement without system shutdown (if supported).
Application Scenarios:
- Expanding I/O capacity in existing control panels.
- Distributed I/O for remote equipment monitoring.
- Machine safety interlock and permissive monitoring.
Performance Parameters:
- Scan Time: Fast digital update rate.
- Isolation: Opto-isolated channels for noise immunity.
Material Composition & Structural Characteristics:
- Housing: Compact industrial enclosure.
- Connectors: Removable terminal blocks or ribbon cable interface.
- PCB: Conformal-coated for environmental protection.
Working Principle:
Input channels use optocouplers to isolate field signals from the internal logic. When a field voltage is applied, the optocoupler activates, and the module registers a digital “1”. Output channels use solid-state relays or transistors to switch load currents based on controller commands. The module reports status and faults to the master controller.
Installation Requirements:
- Configure channel direction (input/output) via software or jumpers.
- Wire field devices with appropriate wire gauge and protection.
- Ensure adequate power supply for output loads.
Usage Precautions:
- Verify load current does not exceed channel ratings.
- Use flyback diodes for inductive DC loads.
- Check diagnostic alarms for wiring faults.
