Description

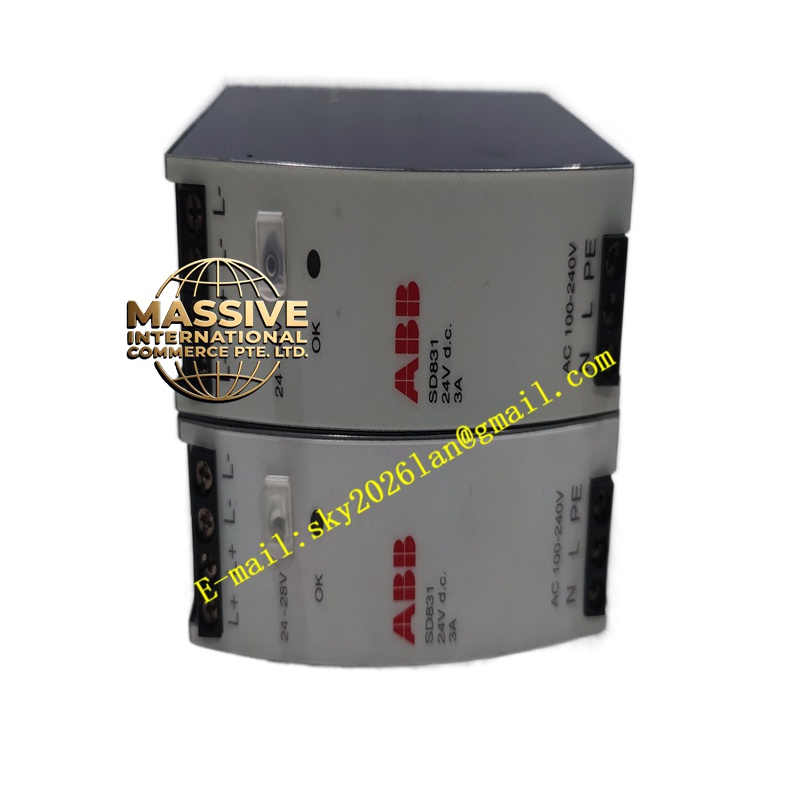

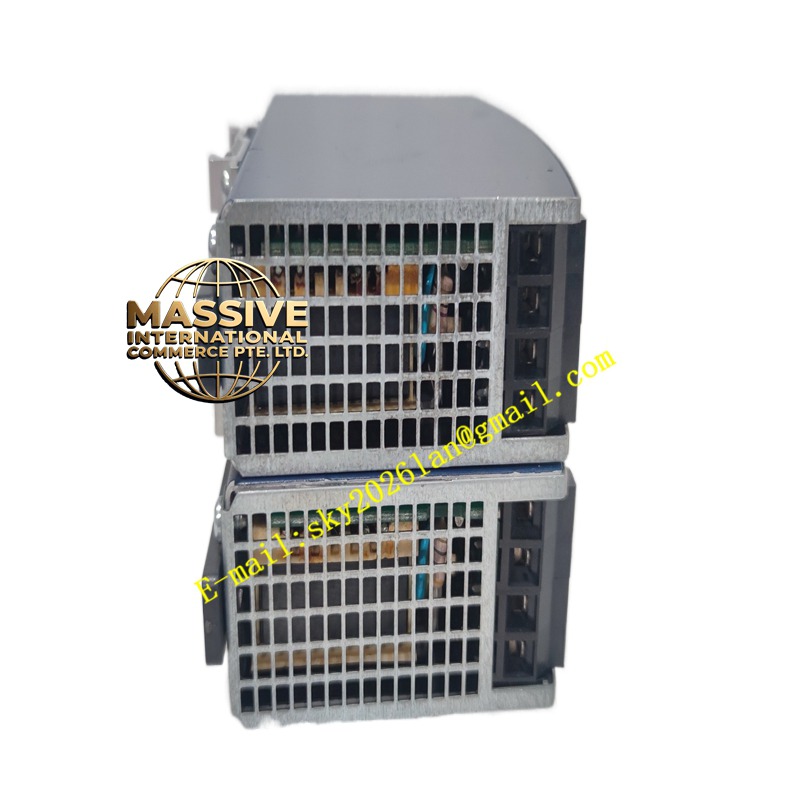

ABB SD831
Technical Specifications:
- Output: 24 V DC, multi-ampere continuous output.
- Input: Wide-range AC input.
- Efficiency: >90% typical efficiency.
- MTBF: High mean time between failures for extended service life.
Functional Features:
- Robust Protection: Comprehensive electronic protection against overloads and short circuits.
- Low Ripple: Clean DC output for noise-sensitive control electronics.
- Status Monitoring: Power OK relay contact and LED indicator.
- Global Compatibility: Accepts worldwide AC voltage standards.
Application Scenarios:
- General-purpose power supply in industrial control panels.
- Powering PLCs, HMIs, and communication modules.
- Auxiliary power for instrumentation and control circuits.
Material Composition & Structural Characteristics:
- Construction: Ruggedized enclosure with conformal-coated internal PCB.
- Mounting: Standard DIN rail compatible.
- Connectivity: Clearly labeled, heavy-duty terminals.
Working Principle:
Converts AC mains to DC through rectification, high-frequency switching, and regulation. Continuous feedback ensures output stability, while protection circuits safeguard against abnormal operating conditions.
Installation Requirements:
- Follow standard industrial wiring practices for power distribution.
- Ensure adequate ventilation and avoid mounting near heat sources.
- Ground the chassis properly for safety and EMI reduction.
Usage Precautions:
- Regularly inspect terminal connections for tightness during maintenance.
- Replace the unit immediately if abnormal noise or overheating is detected.
