Description

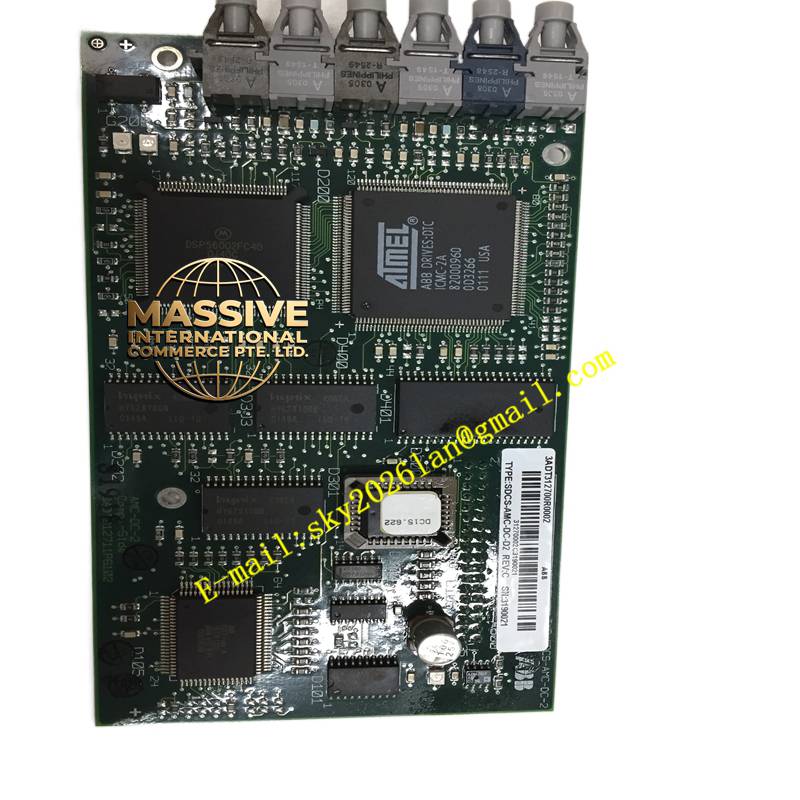

ABB SDCS-AMC-DC-D2
Technical Specifications:
- Model: SDCS-AMC-DC-D2
- Function: Analog Measurement and DC Motor Control
- System: ABB DCS800 / DC Drive Series
Functional Features:
- High-Precision Measurement: Accurately measures armature and field currents, voltages, and temperatures.
- Closed-Loop Control: Executes advanced control algorithms for speed, torque, and position regulation.
- Signal Conditioning: Filters and adapts analog signals for the main control processor.
Application Scenarios:
Essential for DC drive applications in rolling mills, marine propulsion, and heavy industrial manufacturing requiring precise motor control.
Performance Parameters:
- Accuracy: High-resolution analog-to-digital conversion for precise control.
- Response Time: Fast processing for dynamic motor control adjustments.
Material Composition:
Industrial-grade PCB with precision analog components and conformal coating.
Structural Features:
Plug-in board with secure connectors and front-panel test points for diagnostics.
Working Principle:
Continuously samples analog signals from the DC motor and power stage, processes them through control algorithms, and outputs precise control signals to the thyristor firing circuits.
Installation Requirements:
Handle with extreme care due to sensitive analog components. Ensure all analog signal cables are shielded and properly grounded.
Usage Precautions:
Never disconnect analog sensors while the drive is energized. Perform calibration checks during preventive maintenance.
