Description

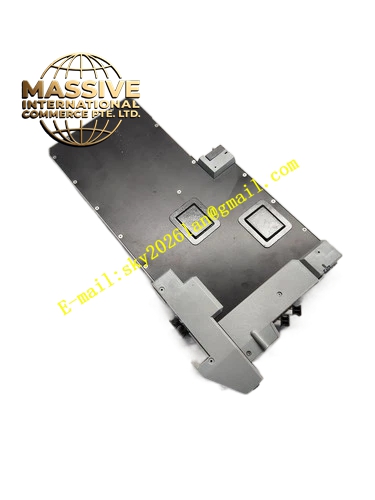

Foxboro ZCP270
Technical Specifications
- Processor: High-speed industrial RISC processor.
- I/O Capacity: Supports extensive local FBM connections and remote expansion via FEM100.
- Network Interface: 100 Mbps Fiber Optic Ethernet.
- Control Cycle: Minimum 50 ms for critical control loops.
Functional Features
- Autonomous Operation: Capable of executing complex control strategies independently of the host system.
- High-Speed Local Control: Optimized for fast-response processes requiring minimal latency.
- Seamless Network Integration: Synchronizes data with the global control network for unified monitoring.
- Advanced Diagnostics: Comprehensive self-diagnostics and alarm management.
Application Scenarios
Ideal for localized control of skid-mounted equipment, remote pumping stations, compressor packages, and fast-reacting chemical processes.
Ideal for localized control of skid-mounted equipment, remote pumping stations, compressor packages, and fast-reacting chemical processes.
Performance Parameters
- Data Throughput: High-bandwidth backplane communication.
- Environmental Tolerance: -20°C to +70°C wide-temperature operation.
- Reliability: High MTBF with redundant power support.
Material Composition
High-strength aluminum alloy enclosure providing superior EMI performance and thermal management.
High-strength aluminum alloy enclosure providing superior EMI performance and thermal management.
Structural Characteristics
- Standardized Interfaces: Compatible with existing I/A Series baseplates.
- Maintenance Friendly: Supports tool-less removal and hot-swapping.
- Status Indicators: Comprehensive LED panel for RUN, FAULT, and COM status.
Working Principle
The ZCP270 polls I/O modules via the high-speed backplane bus, executes control algorithms using its internal RISC processor, and encapsulates results into Ethernet frames for transmission to the control network.
The ZCP270 polls I/O modules via the high-speed backplane bus, executes control algorithms using its internal RISC processor, and encapsulates results into Ethernet frames for transmission to the control network.
Installation Requirements
- Must be reliably grounded to prevent ESD and interference.
- Fiber optic or network cable connections must comply with布线 (wiring) standards.
- Ensure the cabinet is free from corrosive gases.
Precautions for Use
- Firmware upgrades must strictly follow official guidelines.
- Avoid use in high-vibration environments without proper mechanical reinforcement.
- Regularly check battery status (if applicable) to maintain clock and cache integrity.
