Description

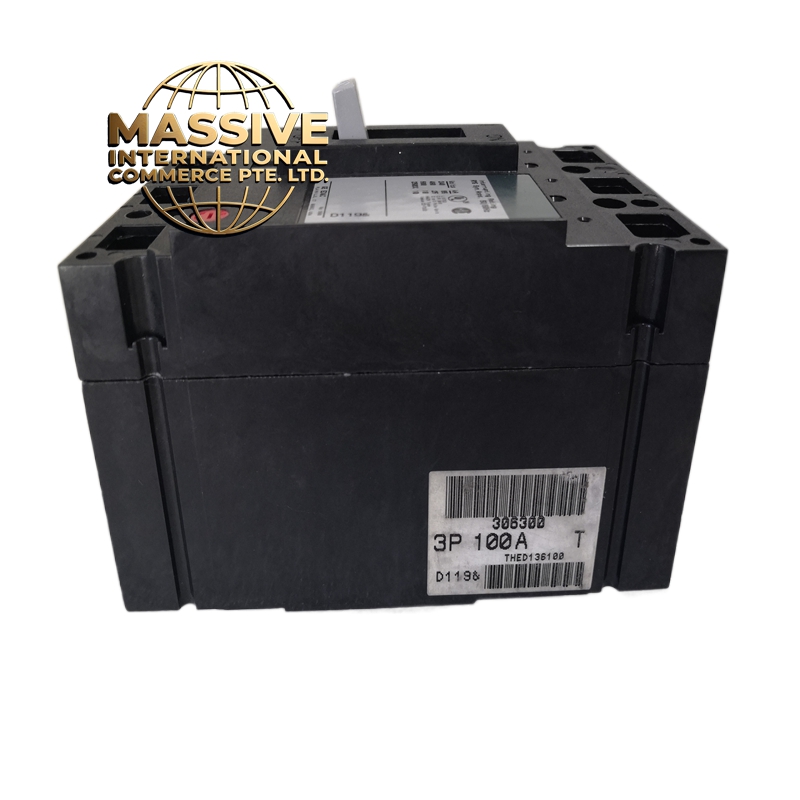

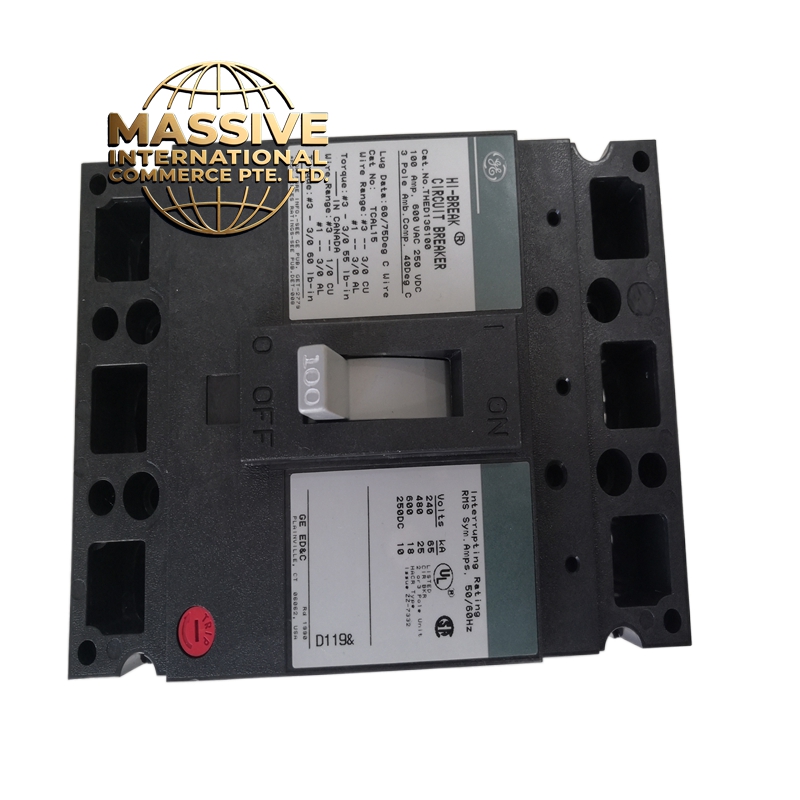

GE THED136100WL
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Line | GE E150 Line, Type THED |
| Current Rating | 100 Amperes |
| Poles | 3 Pole, 3 Phase |
| Voltage Rating | 600 VAC |
| Interrupting Rating | 25 kA at 480V |
| Frame Size | THED Frame |
| Connection Type | Lug terminals |
| Trip Unit | Thermal-magnetic |
| Mounting | Panel or DIN rail mountable |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Certifications | UL, CSA |
Functional Features
-
Thermal-Magnetic Protection: Combined long-time thermal and instantaneous magnetic trip functions
-
High Interrupting Capacity: 25 kA interrupting rating at 480V for reliable fault clearing
-
Quick-Make/Quick-Break Mechanism: Ensures positive contact operation under all conditions
-
Trip-Free Design: Breaker cannot be held closed against a fault condition
-
Visual ON/OFF Indication: Clear handle position shows breaker status
-
Optional Shunt Trip: Available for remote tripping applications
-
Padlock Provision: Allows lockout/tagout for safety procedures
-
Long Mechanical Life: Designed for thousands of operating cycles
Structural Characteristics
-
High-strength molded thermoset composite case
-
Silver alloy main contacts for low resistance
-
Arc chutes with deionizing plates for efficient arc interruption
-
Mechanical energy storage mechanism for fast contact operation
-
Compression-type lug terminals for secure conductor connection
-
Compact design for high-density panel installations
-
Corrosion-resistant hardware and components
Working Principle The THED breaker uses a combined thermal-magnetic trip mechanism. The thermal element is a bimetallic strip that responds to sustained overload currents by heating and bending until it releases the trip mechanism. The magnetic element is a solenoid coil that responds instantaneously to high-magnitude short-circuit currents, providing rapid fault clearing. When tripped, the stored energy mechanism drives the contacts apart at high speed. The resulting arc is forced into the arc chute where it is split, cooled, and extinguished by the deionizing plates. The breaker handle moves to the tripped position, providing clear visual indication of the fault condition.
Installation Requirements
-
Install in suitable electrical enclosure with adequate ventilation
-
Use appropriate conductor size for 100A rating (typically 1/0 AWG copper)
-
Torque terminal connections to manufacturer specifications
-
Maintain proper clearances from live parts per electrical code
-
Install with handle in accessible location for operation
-
Ensure proper phase identification for three-pole applications
Application Scenarios
-
Industrial motor branch circuit protection
-
Commercial building main feeder protection
-
Power distribution panel applications
-
Transformer secondary protection
-
Generator set circuit protection
-
HVAC equipment circuit protection
Usage Precautions
-
Verify breaker rating matches circuit load requirements
-
Do not exceed rated interrupting capacity
-
Inspect contacts periodically for wear or damage
-
Test trip function annually to verify proper operation
-
Ensure enclosure ventilation is not obstructed
-
Replace breaker showing signs of overheating or damage
-
Follow lockout/tagout procedures for maintenance work
