Description

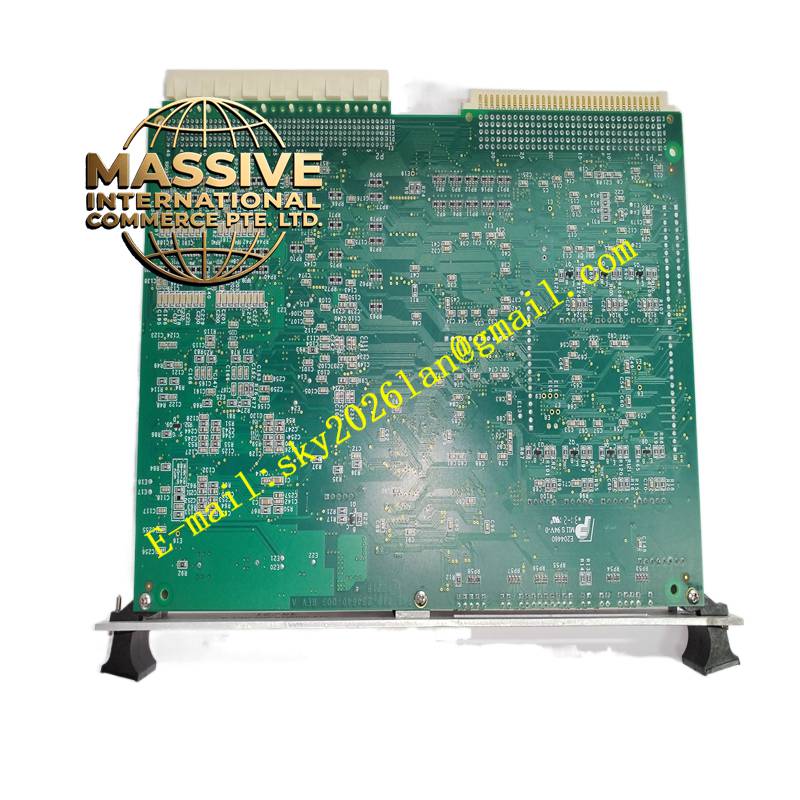

LAM 810-234640-312
Technical Specifications:
- Brand: LAM
- Model: 810-234640-312
- Product Type: Vacuum Pump Control Interface
- System Compatibility: LAM Vacuum Subsystems
Functional Features:
- Pump Sequencing: Automates the safe startup, operation, and shutdown sequences of vacuum pumps.
- Fault Monitoring: Continuously monitors pump temperature, vibration, and power consumption for predictive maintenance.
- Speed Control: Provides variable frequency drive signals for precise pressure control via pump speed modulation.
Application Scenarios:
Essential for maintaining base vacuum, process pressure control, and safe chamber venting in etch and deposition tools.
Performance Parameters:
- Control Accuracy: Precise speed regulation for stable chamber pressure.
- Protection Features: Comprehensive overcurrent, over-temperature, and stall protection.
- Communication: Real-time status reporting via system bus.
Material Composition:
Industrial-grade electronics with enhanced EMI shielding to operate reliably near high-power pump drives.
Structural Characteristics:
Rack-mountable module with high-current pump motor connectors and low-voltage control interfaces.
Working Principle:
Receives vacuum setpoints from the process controller, adjusts pump speed via VFD signals, and monitors pump health sensors to ensure reliable vacuum generation.
Installation Requirements:
Use properly sized motor cables and ensure adequate cooling for the pump drive electronics. Verify phase rotation for three-phase pumps.
Usage Precautions:
Never bypass pump protection interlocks. Allow pumps to cool completely before performing maintenance.
