Description

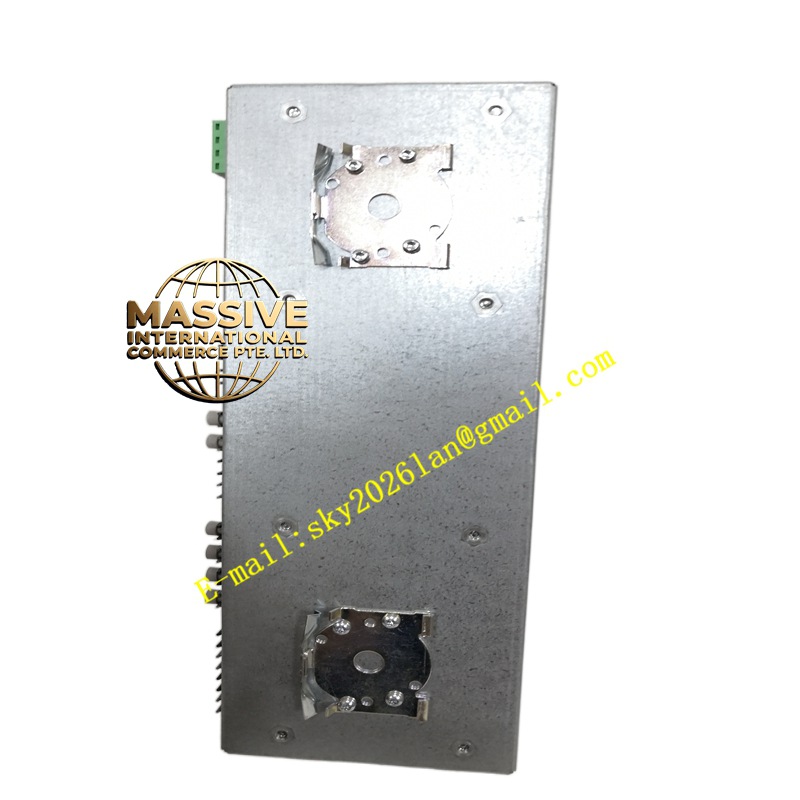

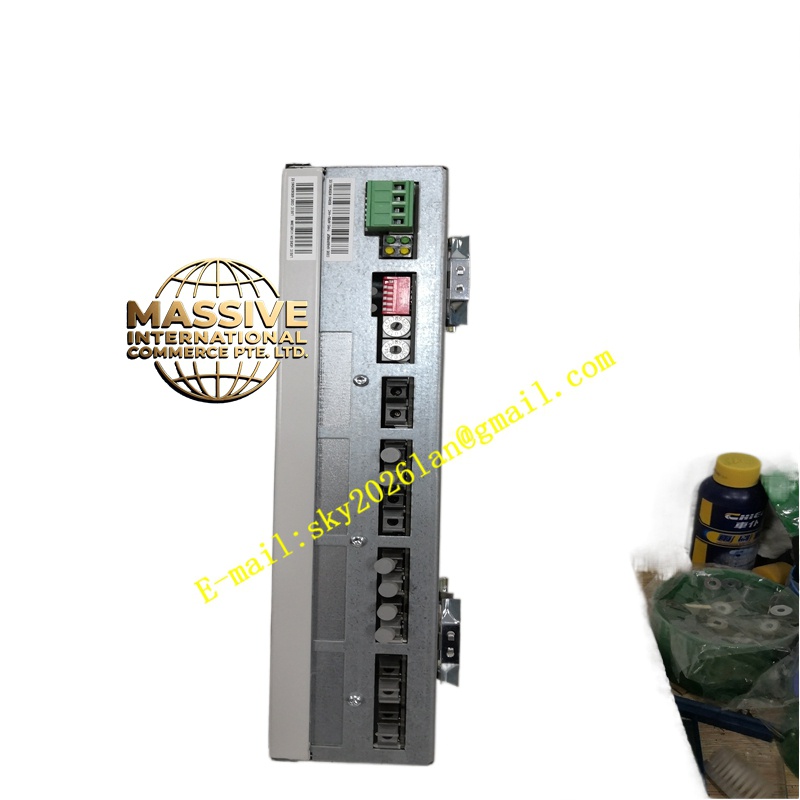

ABB APBU-44C
Technical Specifications:
- Fiber Optic Connections: V1-V8 for inverter modules 1-4; V9-V10 for RDCU drive control unit; V11-V12 for DDCS/PC data recording.
- External Connections: V13-V14 for trigger pulse input/output.
- Power Supply: Requires external 24V DC power.
Functional Features:
- Data Logging: Built-in data logger collects and stores real-time operational data for plotting and analysis.
- Parallel Control: Enables the parallel operation of multiple ASC800 inverters or supply units via PPCS fiber optics.
- Node Addressing: Configurable node addresses via S1 and S2 switches for PC communication.
Application Scenarios:
- Multi-axis drive systems requiring synchronized power distribution.
- Predictive maintenance and performance analysis in heavy industrial drives.
Performance Parameters:
- Connectivity: Supports up to 4 inverter/supply modules (APBU-44CE supports up to 12).
- Data Transfer: High-speed fiber optic communication ensuring noise immunity.
Material Composition & Structural Features:
- Mounting: Designed for standard DIN rail installation.
- Indicators: Equipped with RXD, TXD, and BAT LEDs for communication and battery status monitoring.
Working Principle:
Interconnects the RDCU drive control unit with individual drive modules using PPCS optical fibers. It simultaneously captures internal drive parameters and stores them locally or transmits them to a PC via DDCS for advanced diagnostics.
Installation Requirements:
- Connect fiber optic cables strictly according to the V1-V14 port mapping.
- Provide a stable 24V DC external power supply.
Usage Precautions:
- Handle fiber optic cables with care to prevent signal attenuation.
- Monitor the BAT LED to ensure the memory retention battery is functional.
