Description

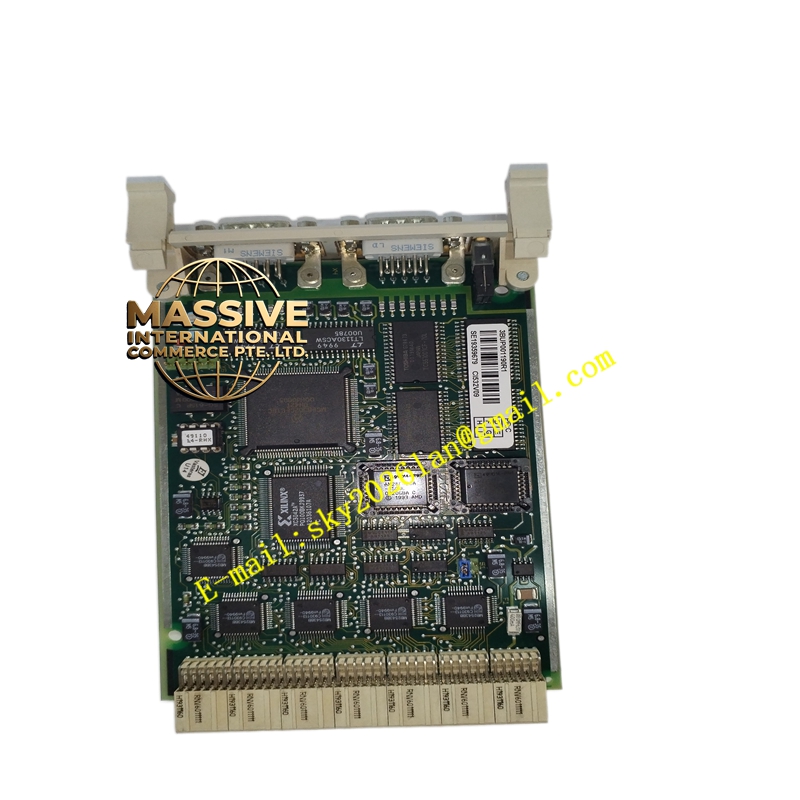

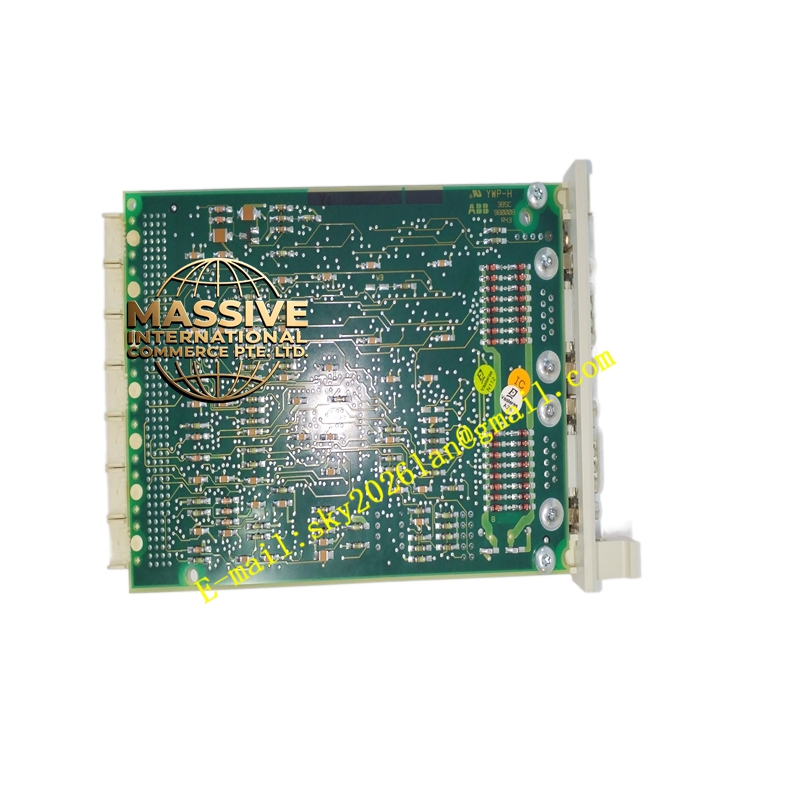

ABB CI532V09
Technical Specifications:
- Communication Protocol: PROFIBUS DP (Distributed Peripherals) V1, compliant with EN 50170 standards.
- Data Transfer Rate: Configurable from 9.6 kbit/s up to 12 Mbit/s with automatic baud rate detection.
- Network Connection: Supports one PROFIBUS DP network operating as a Class 1 DP Master.
- Physical Interface: Standard 9-pin D-sub female connector (RS-485) for PROFIBUS communication.
- I/O Bus Connection: Interfaces directly with the local S800 I/O bus on the right side.
- Power Supply: Powered directly through the S800 I/O baseboard (typically 5V DC).
- Operating Temperature: Rated for 0°C to 60°C.
Functional Features:
- Seamless Data Translation: Converts high-speed deterministic controller data into PROFIBUS DP telegrams and vice versa.
- Electrical Isolation: Provides complete galvanic isolation between the internal S800 I/O bus and the external PROFIBUS network to prevent ground loops and signal interference.
- Comprehensive Diagnostics: Features detailed LED indicators for module status, communication health, and network diagnostics to facilitate rapid troubleshooting.
- Engineering Tool Integration: Fully configured, parameterized, and debugged using the ABB Control Builder M engineering software.
Application Scenarios:
- Connecting remote I/O stations, variable frequency drives (VFDs), and intelligent field instruments to the 800xA DCS.
- Expanding distributed I/O architectures in continuous process automation.
- Reducing cabling costs and simplifying cabinet layouts in large-scale industrial facilities.
Performance Parameters:
- Latency: Microsecond-level response time to meet the strict timing requirements of continuous production control.
- Reliability: Designed for high availability with industrial-grade electromagnetic compatibility (EMC) to withstand harsh electrical environments.
Material Composition & Structural Characteristics:
- Form Factor: Compact, modular design conforming to standard S800 I/O dimensions.
- Enclosure: Ruggedized industrial plastic housing providing IP20 protection.
- Internal Build: High-density multi-layer printed circuit board (PCB) utilizing surface-mount technology for optimal thermal management and signal integrity.
Working Principle:
The module acts as a protocol translator and gateway. It receives control commands from the S800 I/O bus, packages them into PROFIBUS DP-V1 messages, and transmits them over the RS-485 physical layer to field devices. Conversely, it receives sensor data and status updates from field devices, validates the data, and routes it back to the central controller over the I/O bus.
Installation Requirements:
- Bus Termination: Ensure proper termination resistors are activated at both ends of the PROFIBUS DP network.
- Cabling: Use certified PROFIBUS twisted-pair cables with appropriate shielding to guarantee signal integrity at high baud rates.
- Mounting: Securely attach the module to the S800 I/O baseboard and engage the mechanical locking mechanisms.
Usage Precautions:
- Grounding: Properly ground the PROFIBUS shield at the connector to prevent electromagnetic interference.
- Configuration: Verify that the node address and baud rate match the network configuration defined in the Control Builder M project.
- Handling: Observe standard electrostatic discharge (ESD) precautions when handling the module to protect sensitive internal components.
