Description
Bently IMSPM01
Technical Specifications
- Part Number: IMSPM01
- Module Type: Power Monitor
- Monitoring Targets: +5V, +15V, -15V, and +25.5V DC rails
Key Features
- Real-Time Diagnostics: Continuously measures voltage levels and reports deviations to the control system.
- Fault Localization: Works with the IPSYS01 power modules to identify which specific power rail or module is failing.
- Proactive Alerting: Triggers pre-alarm warnings before voltage drops cause logic failures.
Application Scenarios
Installed in every PCU cabinet to provide system-level visibility into power health, preventing unexpected control system outages.
Performance Parameters
- Measurement Accuracy: High-precision ADC for reliable voltage trending.
- Response Time: Millisecond-level detection of voltage sags or surges.
Material Composition
Precision analog front-end circuitry housed in a standard industrial module enclosure.
Structural Characteristics

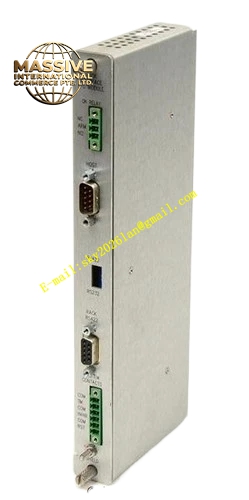

Compact module featuring front-panel LEDs that mirror the status of the IPSYS01 power modules for quick visual troubleshooting.
Working Principle
Samples the backplane voltage rails, compares them against predefined thresholds, and updates the system status registers to alert operators of degrading power conditions.
Installation Requirements
Install in the designated monitor slot adjacent to the power supply modules.
Usage Precautions
If the IMSPM01 indicates a fault, cross-reference with the IPSYS01 LEDs to determine if the issue is a failed power supply or a backplane short circuit.
