Description

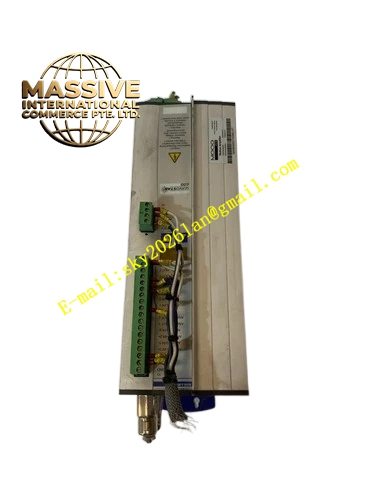

Kollmorgen S61400
Technical Specifications
- Rated Supply Voltage: 3 × 230V to 480V AC, 50/60 Hz (±10%)
- Rated Output Current (RMS): 14A
- Peak Output Current: 42A
- Auxiliary Supply Voltage: 24VDC, electrically isolated
- Control Modes: Torque, speed, position, and electronic gearing
- Communication: RS232 (standard), CANopen (standard)
- Expansion Options: PROFIBUS, SERCOS, DeviceNet, EtherCAT, SynqNet
- Certifications: CE, UL, cUL, GOST-R
Functional Features
- Integrated Position Controller: Stores up to 255 motion tasks with profile, positioning, and vibration-limiting control
- Multi-Feedback Support: Resolver, ComCoder, incremental/sine encoders, EnDat, HIPERFACE, BISS
- Electronic Gearing: Master-slave operation with up to 16 slave amplifiers
- Encoder Emulation: Incremental encoder output and SSI absolute encoder output
- Automatic Tuning: Auto current and speed regulation
- State Vector Modulation: Maximum power efficiency
- Integrated EMC Filter: Without external filter requirement
- PC-Based Setup: Windows-based GUI with start-up wizard
- Expansion Card Slot: For additional I/O, communication, or control options
Application Scenarios
- CNC Machine Tools: High-power spindle and axis control
- Industrial Robotics: Heavy-duty joint control
- Gantry Systems: Multi-axis coordinated motion
- Packaging and Assembly Lines: High-speed material handling
- Semiconductor Manufacturing: Precision positioning
- Medical Equipment: High-precision surgical and imaging systems
Performance Parameters
- Continuous Current: 14A RMS
- Peak Current: 42A
- Current Loop Bandwidth: Exceeds 1.2 kHz
- Velocity Loop: Full 28-bit resolution
- Position Loop: 250μs refresh time
- PWM Clock Frequency: 4/16 kHz selectable
Material Composition
Metal housing with integrated EMC filter, IGBT power stage, digital signal processor, and optically isolated I/O circuits.
Structural Features
- Panel Mount: M5 hexagon socket screw mounting
- Full-Spec Terminal Blocks: No adapter or jumper plates required
- Integrated CE Filter: Eliminates need for external EMC filter
- Front Panel LED Display: 3-digit 7-segment display for status and fault codes
- Expansion Card Slot: Pre-installed slot for modularity
- Compact Design: Optimized for control cabinet installation
Working Principle
