Motorola MVME162P-344SE

Motorola MVME162P-344SE

Product Introduction
The MVME162P-344SE is a comprehensive variant in the MVME162P4 series, integrating both Ethernet and SCSI interfaces. It offers complete connectivity and storage solutions for complex industrial systems.

Request Quote
Category:

Description

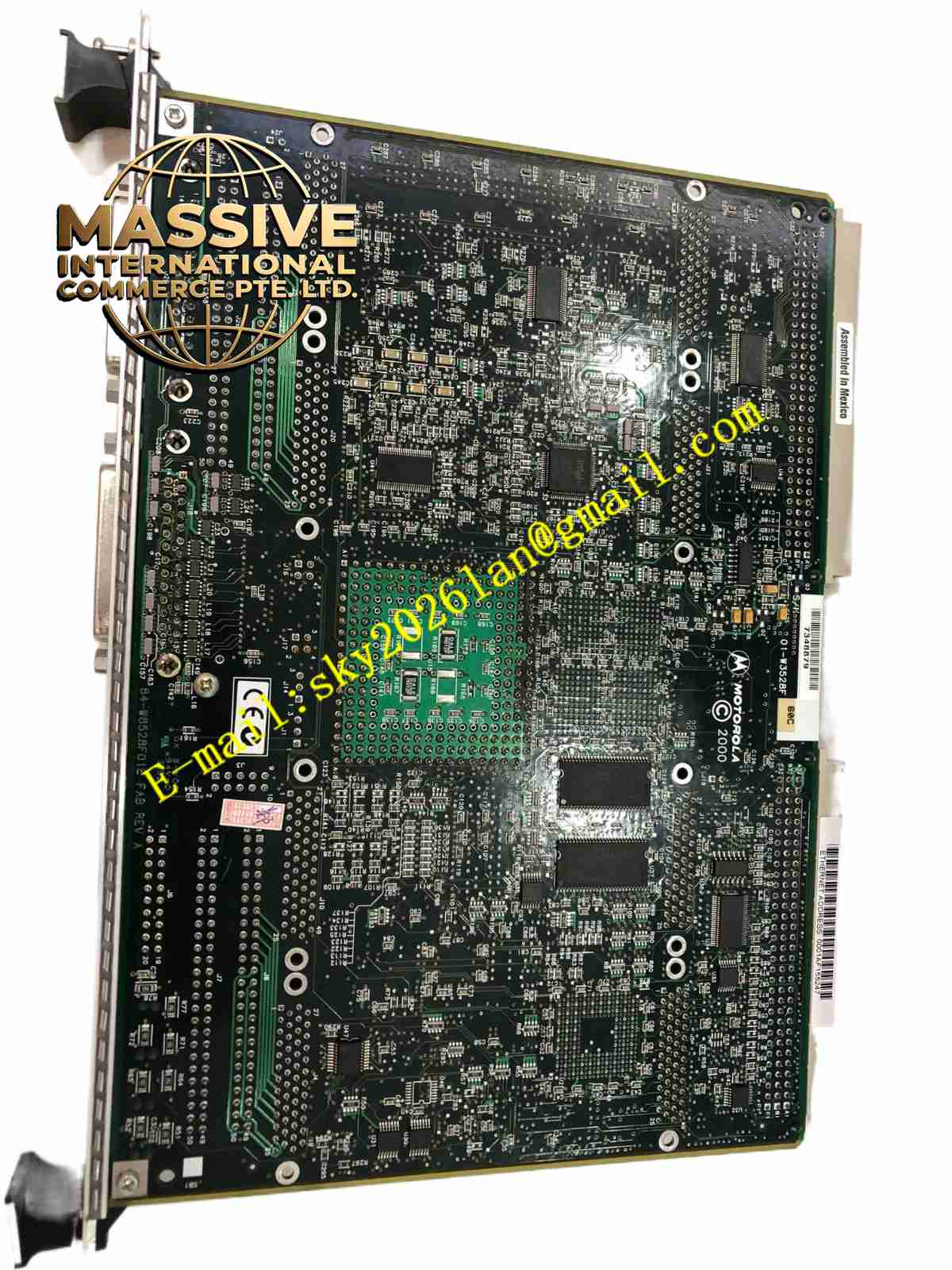

Motorola MVME162P-344SE

Technical Specifications

  • Microprocessor: 25 MHz MC68LC040 enhanced 32-bit microprocessor.
  • Main Memory: 16MB SDRAM.
  • Integrated Interfaces: Ethernet and SCSI.
  • Storage Resources: 512KB battery-backed SRAM, 1MB Flash, and 8K NVRAM.

Functional Features

  • Enhanced Connectivity: Integrated Ethernet and SCSI with DMA support.
  • Petra ASIC: Efficient memory and interface management.
  • VME System Control: A32/D64 master/slave and system controller.
  • IndustryPack: Four IP ports for expansion.

Application Scenarios
Ideal for industrial control requiring network communication and local storage, data acquisition, and process control.

Performance Parameters

  • VME Transfer: Supports D64 BLT.
  • Serial Ports: Dual EIA-232-D/EIA-422.
  • Timers: Six 32-bit timers and watchdog.

Material Composition
Industrial PCB with Ethernet PHY, SCSI controller, MC68LC040, and Petra ASIC.

Structural Characteristics
Standard 6U VME size with front-panel indicators.

Working Principle
The Petra ASIC manages all resources, utilizing DMA for Ethernet, SCSI, and VMEbus data transfers.

Installation Requirements

  • Insert into a compatible VME chassis.
  • Configure memory and interface switches.
  • Ensure proper SCSI termination and cooling.

Usage Precautions

  • ESD protection mandatory.
  • Check backup battery.
  • Verify SCSI termination configuration.
