Description

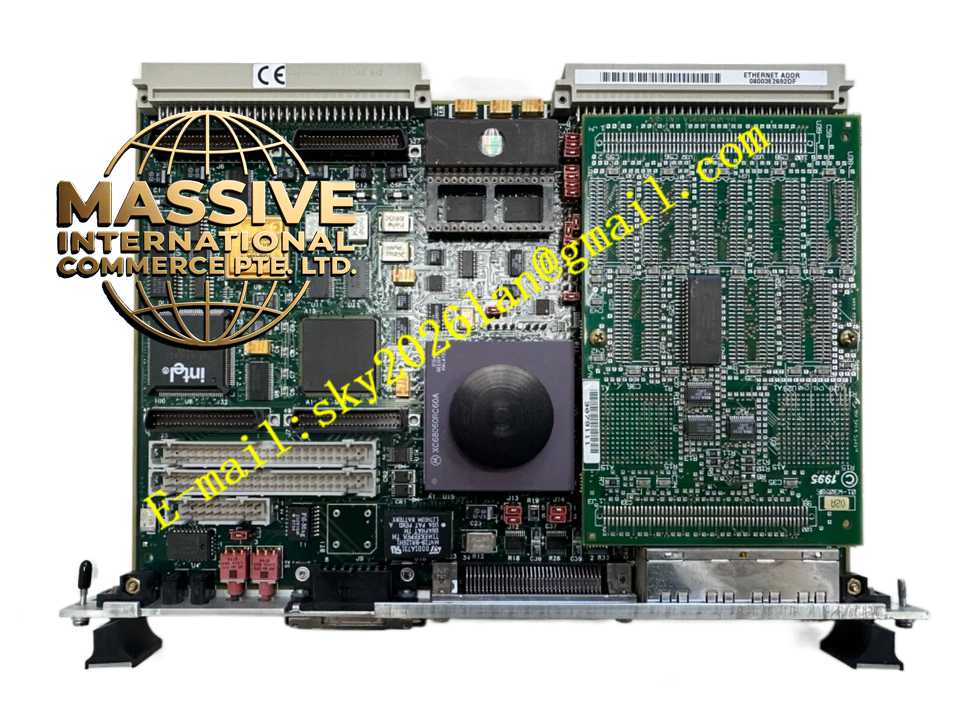

Motorola MVME172P-644LSE
Technical Specifications
- Processor: 60 MHz MC68060.
- Memory: 16 MB SDRAM.
- Storage Interface: SCSI-2 interface for high-speed hard drives or optical drives.
- Network Interface: 10/100Mbps Ethernet.
Functional Features
- Mass Storage: SCSI interface supports large-capacity hard drives for data logging, journal storage, and complex applications.
- Dual Communication: Combines high-speed networking and local storage for comprehensive functionality.
- High Reliability: MC68060 processor provides full MMU and cache support.
Application Scenarios
Data logging systems, video/image acquisition, complex process control, and test equipment requiring local mass storage.
Performance Parameters
- SCSI Performance: 32-bit local bus DMA achieves high-speed SCSI data transfers.
- Processor Features: 60 MHz MC68060 includes a floating-point unit for complex calculations.
- System Expansion: Supports multiple SCSI devices for flexible storage configurations.
Material Composition
High-reliability PCB with specially designed SCSI and Ethernet interface circuits to guarantee signal quality.
Structural Characteristics
Front panel provides SCSI high-density connectors, RJ-45 port, and serial ports with a rational layout for easy cabling.
Working Principle
Utilizes the SCSI controller and DMA channels for high-speed data exchange with storage devices while communicating over the network.
Installation Requirements
SCSI bus must be properly terminated. Ensure SCSI cable length does not exceed specifications and verify no SCSI ID conflicts.
Usage Precautions
Confirm system support before hot-swapping SCSI devices. Avoid running SCSI cables parallel to power lines and check SCSI bus status regularly.
