Description

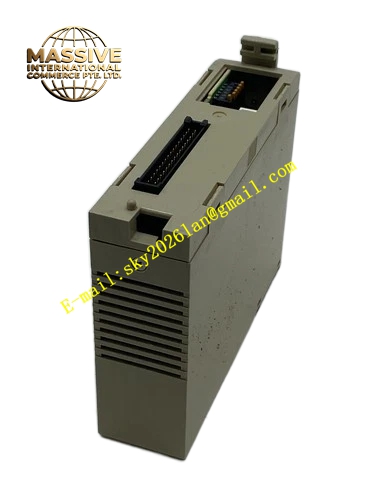

OMRON C200H‑ID215
Technical Specifications: Total input points: 32 points; rated input voltage DC24V; allowable input‑voltage range DC19.2‑28.8V; typical input current 4.1mA per channel; ON‑level threshold minimum DC14.4V; OFF‑level threshold maximum DC5V; hardware response‑time maximum 8 ms; optocoupler electrical isolation between field side and PLC logic side; dielectric‑withstand voltage AC1000V 1‑minute between external terminals and ground; backplane bus power consumption 130mA at DC5V; operating temperature 0‑55°C; storage temperature ‑20‑75°C; operating humidity 10‑90%RH without condensation; rack‑slot installation; weight 300g; LED status indicator for each input channelオムロン.
Functional Features: High‑density 32‑channel DC24V digital‑input capacity saves cabinet installation space; optocoupler‑based electrical isolation prevents field‑side surge interference from damaging PLC internal hardware; independent LED status indicator for every input channel provides direct on‑site signal‑status observation; grouped common‑terminal structure simplifies large‑quantity field‑sensor wiring; full compatibility with C200H‑series backplane‑bus architecture.
Application Scenarios: Massive digital‑signal acquisition for automated production lines; proximity‑sensor and photoelectric‑sensor signal collection; packaging‑machinery I/O signal acquisition; spare‑part replacement for legacy C200H‑series automation installationsオムロン.
Performance Parameters: Isolation circuit effectively suppresses industrial‑field electrical noise; meets IEC electromagnetic‑compatibility requirements for industrial‑control hardware; vibration‑resistance and shock‑resistance satisfy cabinet‑mount‑equipment standards; supports continuous long‑term stable operation within control‑cabinet environments.
Material Composition: Black V0 flame‑retardant engineering‑plastic housing; internal FR‑4 multilayer glass‑fiber printed‑circuit board; large‑quantity optocoupler isolation components; brass nickel‑plated screw‑terminal block; gold‑plated backplane edge‑connector contacts; high‑brightness LED channel‑status indicators.
Structural Features: Standard C200H‑series rack‑slot mechanical profile; gold‑plated edge‑connector on rear housing surface mates with C200H rack backplane bus; front‑panel screw‑terminal block for field DC‑sensor wiring; LED indicator array corresponding to 32 input channels arranged on front‑panel surface; side locking clips secure module into rack‑slot position.
Working Principle: Field DC24V sensor switching‑signal connects to module screw‑terminal block. When input‑terminal voltage rises above ON‑level threshold, corresponding‑channel optocoupler switches ON and converts field DC signal into internal logic‑level signal. Matching‑channel front‑panel LED indicator lights up synchronously. Logic‑state data passes through internal circuit and backplane gold‑plated contacts to C200H‑series CPU for cyclic‑scan reading inside user control program. When field‑signal voltage drops below OFF‑level threshold, optocoupler turns OFF and LED indicator extinguishes.
Installation Requirements: Insert ‑ID215 into available slot on ‑series CPU main rack or expansion rack; fasten ‑series rack onto cabinet DIN rail; use shielded cables for field‑sensor signal wiring where possible; physically separate sensor‑signal cables from high‑power motor and inverter power cables; implement reliable protective grounding for control cabinet.
Usage Notes: Hot‑swap operation for this module is strictly prohibited; external input‑voltage must remain within DC19.2‑28.8V operating range; do not deploy within environments with condensation or corrosive gas; perform periodic inspection for screw‑terminal fastening torque.
