Description

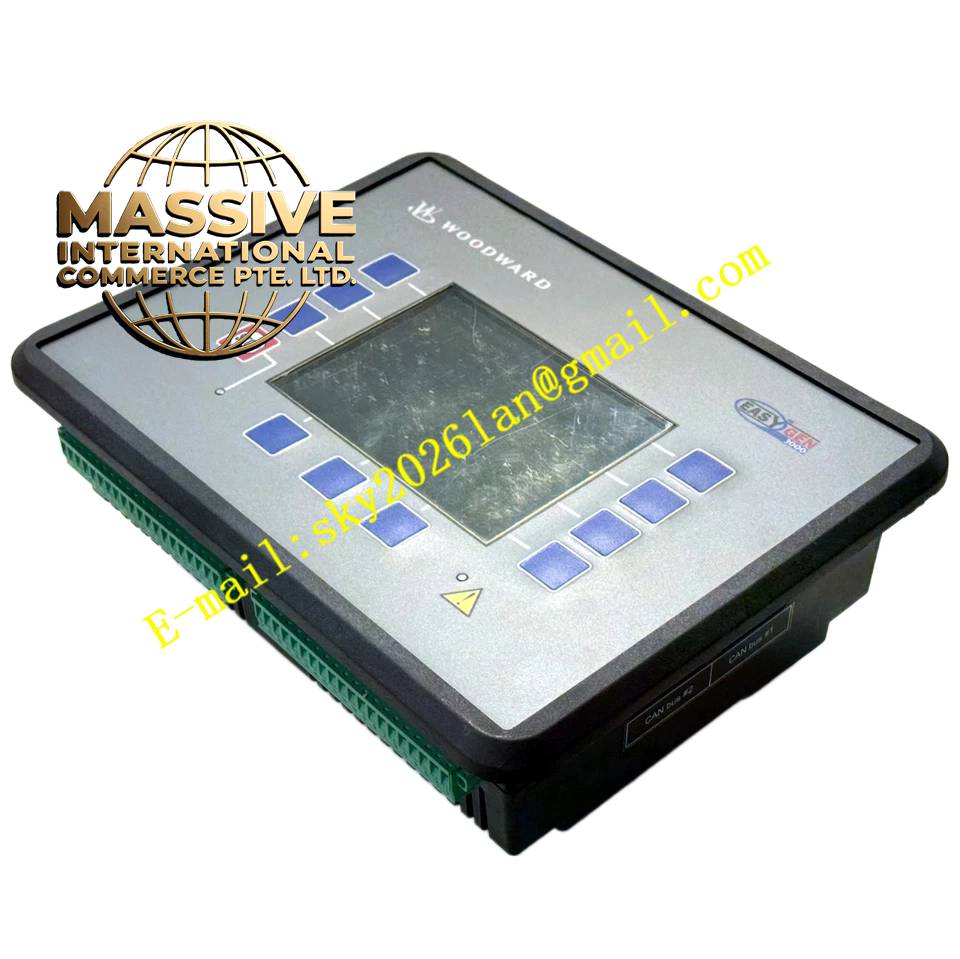

Woodward EGCP-28406-121
Technical Specifications
- Part Number: 8406-121.
- Series: EGCP-2.
- Controller Integration: Pre-wired EASYGEN-3000 series controller.
- Enclosure Rating: NEMA 1 / IP30 (Standard).
Functional Features
- Factory Tested: 100% functional testing performed at the factory to reduce field commissioning time.
- Integrated Protection: Includes dedicated protection relays and circuit breakers.
- Standardized Wiring: Color-coded, labeled wiring for simplified maintenance.
- Customizable I/O: Pre-configured I/O mapping based on standard templates.
Application Scenarios
Widely used by OEM switchgear builders, generator packagers, and system integrators for commercial and industrial standby power systems.
Performance Parameters
- Control Voltage: 24 VDC internal power supply.
- Bus Rating: Sized according to generator kW/kVA rating.
- Compliance: UL 508A, CSA, and CE standards.
Material Composition
Heavy-gauge steel enclosure with powder-coat finish, copper busbars, and industrial-grade terminal blocks.
Structural Characteristics
- Layout: Ergonomic front-door layout with display, pushbuttons, and indicator lights.
- Rear Access: Hinged rear panel for safe field wiring termination.
- Modularity: Expandable I/O and communication modules.
Working Principle
Serves as the localized control and distribution hub for a generator set, receiving sensor inputs, executing control logic via the integrated EASYGEN controller, and switching power to the facility load.
Installation Requirements
Mount on a flat, stable surface. Ensure adequate clearance around the panel for door swing and rear wiring access. Connect incoming generator leads and outgoing load feeders per the provided schematic.
Precautions for Use
Only qualified electricians should perform field terminations. Verify all internal breakers are in the OFF position before applying external power.
