Description

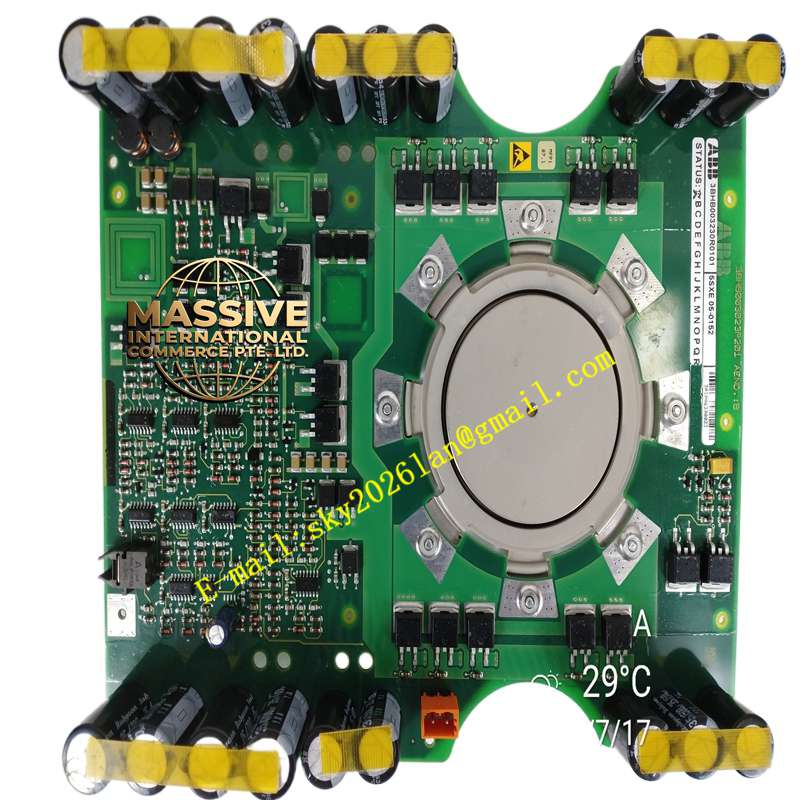

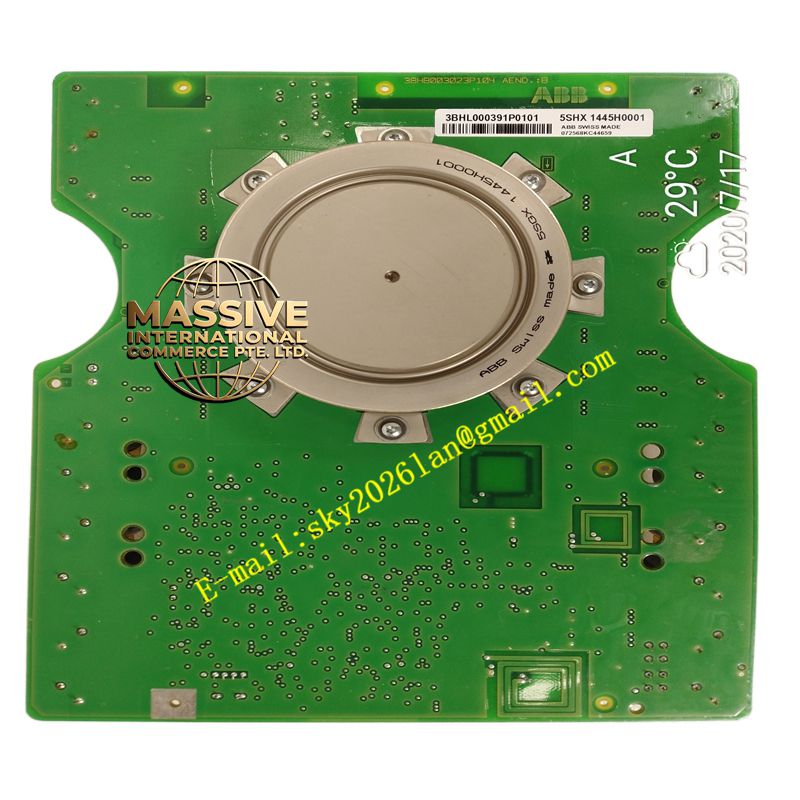

ABB 3BHL000391P0101
Technical Specifications:
- Brand: ABB
- Model Number: 3BHL000391P0101
- Component Type: Thyristor Gate Drive / Control Board
- System Application: Medium-voltage power electronics
Functional Features:
- Precision Firing: Generates highly accurate gate pulses for thyristor commutation.
- Optical Isolation: Utilizes fiber optics for noise-free, high-voltage isolation between control and power stages.
- Thyristor Monitoring: Continuously monitors the health and status of the connected power semiconductors.
Application Scenarios:
- Medium-voltage AC and DC drives.
- Industrial soft starters for large motors.
- High-power rectifier and inverter stations.
Performance Parameters:
- Isolation Voltage: Extremely high optical isolation rating for medium-voltage safety.
- Timing Accuracy: Microsecond-level firing precision.
Material Composition & Structural Features:
- Optical Components: Integrated fiber optic transceivers for signal transmission.
- High-Voltage PCB: Designed with enhanced creepage and clearance distances.
Working Principle:
Receives firing commands from the main controller, converts them to optical signals, and transmits them to the gate drive units attached to the thyristors, while receiving status feedback.
Installation Requirements:
- Handle fiber optic cables with extreme care; do not bend beyond the minimum radius.
- Ensure the board is correctly aligned with the gate drive connectors.
Usage Precautions:
- This board operates in high-voltage environments; strictly follow high-voltage safety lockout/tagout procedures.
- Clean optical connectors with approved tools before installation to prevent signal loss.
