Description

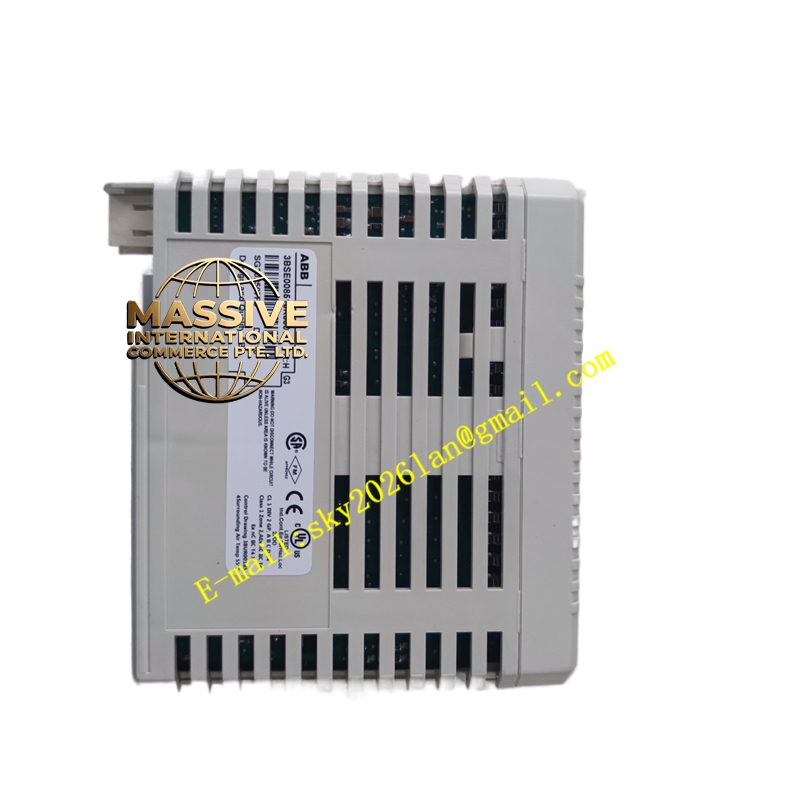

ABB 3BSE008510R0001
Technical Specifications:
- Output Channels: 16 channels (divided into 2 isolated groups of 8 channels each)
- Output Voltage Range: 10V DC to 30V DC (rated 24V DC)
- Output Current: 0.5A per channel (continuous), peak 2A (50ms)
- Signal Type: Current sourcing with current limiting
- Isolation Voltage: 50V (channel group-to-group and group-to-ground)
- Response Time: Less than 10ms
- Protection Features: Short-circuit protection (to ground and 30V), overvoltage protection, overtemperature protection
- Operating Temperature: 0°C to +55°C (horizontal installation), +5°C to +55°C (vertical installation)
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% non-condensing
- Dimensions: 45mm (W) × 102mm (D) × 119mm (H) [111mm with connector]
- Weight: 0.18kg to 0.2kg
- Protection Rating: IP20
- Mounting: DIN rail mounting
- Compatible Termination Units: TU810, TU812, TU814, TU830, TU833
Functional Features:
- High-Density Output: 16 independent digital output channels for controlling multiple actuators simultaneously
- Isolated Channel Groups: Two independently isolated groups of 8 channels each with process voltage supervision
- Comprehensive Protection: Each output channel includes short-circuit and overtemperature protected high-side driver, EMC protection components, inductive load suppression, output state indication LED, and optical isolation barrier
- Voltage Supervision: Process voltage supervision input provides channel error signals if voltage disappears, readable through ModuleBus
- Current Limiting: Outputs are current-limited to protect against overtemperature; output current is limited when overloaded
- OSP Function: Sets outputs to predetermined state upon error detection
- Status Indicators: Individual LED indicators for each channel plus module-level run/fault/warning indicators
Application Scenarios:
- Manufacturing production lines (controlling electromagnetic valves, indicator lights, motors)
- Chemical industry (remote control of pneumatic valves)
- Logistics centers (real-time monitoring of stacker crane operations)
- Packaging machinery control
- Water supply and HVAC systems
- Power generation equipment monitoring
Working Principle: The DO810 receives digital command signals from the controller via the ModuleBus. Each output channel contains a high-side driver that switches the load current based on the received command. The module continuously monitors output status, detects fault conditions, and reports diagnostic information back to the controller for proactive maintenance.
Material Composition:
- High-grade industrial plastic housing
- Optical isolation barriers for signal separation
- EMC protection components
- Inductive load suppression circuits
Installation Requirements:
- Mount on standard DIN rail in control cabinet
- Connect compatible termination unit (TU810, TU812, TU814, TU830, or TU833)
- Ensure proper grounding and shielding
- Maintain minimum clearance for ventilation
Usage Precautions:
- Do not exceed maximum output current per channel
- Verify load compatibility before connection
- Monitor temperature during operation
- Perform regular diagnostic checks via ModuleBus
- Replace faulty modules promptly to maintain system integrity
