Description

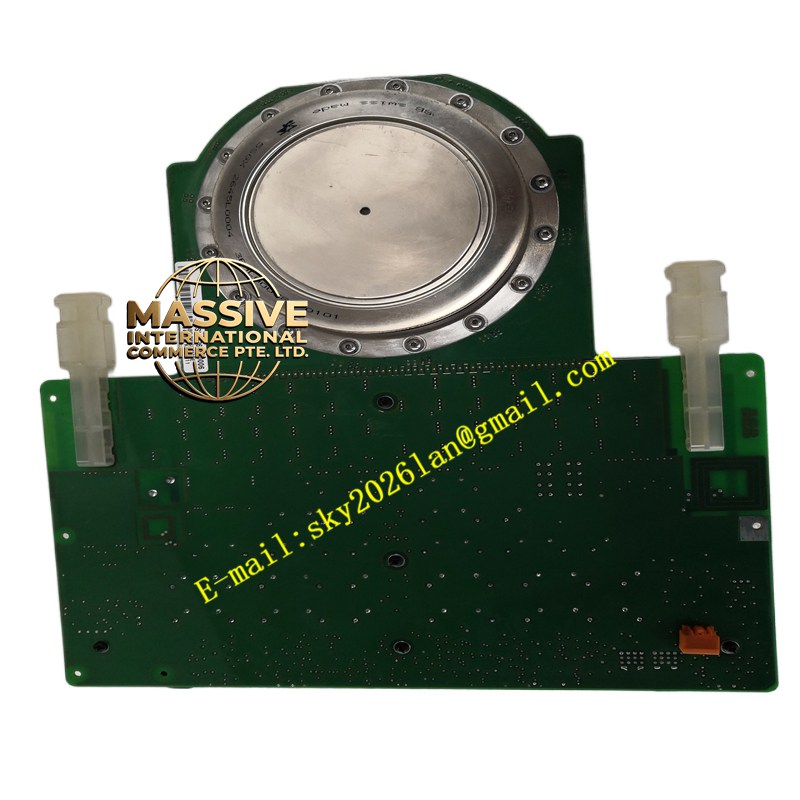

ABB 5SHX2645L0006
Technical Specifications:
- Brand: ABB
- Model Number: 5SHX2645L0006
- Component Type: Press-Pack IGBT
- Voltage/Current Class: High-power medium voltage rating
Functional Features:
- High Efficiency: Extremely low conduction and switching losses, maximizing overall system efficiency.
- Fail-Short Mode: In the rare event of a failure, the device safely shorts out, ensuring system reliability in redundant topologies.
- Robust Overload Capacity: Withstands high surge currents and extreme thermal cycling.
Application Scenarios:
- Medium-voltage Variable Frequency Drives (VFDs).
- High-voltage Direct Current (HVDC) transmission systems.
- Industrial traction, marine propulsion, and renewable energy inverters.
Performance Parameters:
- Switching Speed: Fast switching capabilities enabling high-frequency pulse-width modulation (PWM).
- Thermal Performance: Optimized for efficient heat transfer through direct mechanical clamping.
Material Composition & Structural Features:
- Press-Pack Housing: Hermetically sealed, double-sided cooled ceramic and metal package.
- Flat Interfaces: Highly polished, flat surfaces on both sides to ensure optimal thermal contact with heat sinks.
Working Principle:
Acts as a high-speed solid-state switch. By applying a small voltage to the gate terminal, it allows a massive current to flow between the emitter and collector, precisely controlling the delivery of electrical power to the load.
Installation Requirements:
- Apply precise, uniform mechanical clamping pressure as specified by ABB to prevent internal damage.
- Use approved thermal interface compounds and ensure heat sink surfaces are perfectly flat and clean.
Usage Precautions:
- Handle with extreme care; dropping or uneven clamping can fracture the internal silicon die.
- Strictly adhere to electrostatic discharge (ESD) and high-voltage safety protocols during installation.
