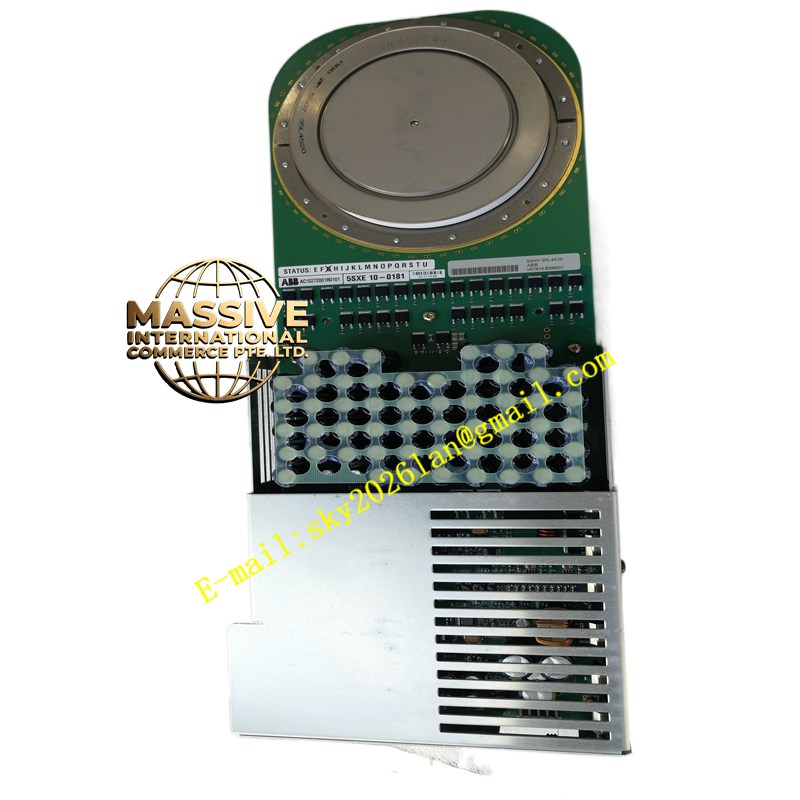

ABB 5SHY35L4520
Technical Specifications:
- Brand: ABB
- Model Number: 5SHY35L4520
- Component Type: Press-Pack IGBT
- Application: Medium-voltage power electronics
Functional Features:
- Enhanced Ruggedness: Designed to withstand harsh electrical transients and extreme operating temperatures.
- High Surge Current Rating: Capable of handling massive short-circuit currents without catastrophic failure.
- Low Inductance Design: Minimizes voltage spikes during high-speed switching transitions.
Application Scenarios:
- Heavy industrial motor drives.
- Static VAR compensators and power quality systems.
- High-power rectifiers and inverters.
Performance Parameters:
- Voltage Blocking: High reverse and forward voltage blocking capability.
- Thermal Cycling Endurance: Extended lifecycle under continuous power cycling conditions.
Material Composition & Structural Features:
- Advanced Packaging: Utilizes advanced pressure contact technology, eliminating wire bonds and solder joints for superior reliability.
- Isolated Gate: Electrically isolated gate drive interface for safe and noise-free triggering.
Working Principle:
Operates as a voltage-controlled switch. The gate drive unit modulates the gate voltage to precisely regulate the massive current flowing through the device, converting raw electrical power into controlled mechanical or thermal energy.
Installation Requirements:
- Ensure the clamping fixture applies perfectly parallel force across the entire device surface.
- Verify thermal interface material coverage before final assembly.
Usage Precautions:
- Never exceed the maximum specified clamping force to avoid mechanical crushing.
- Ensure adequate cooling system flow rates are maintained during operation.
