Description

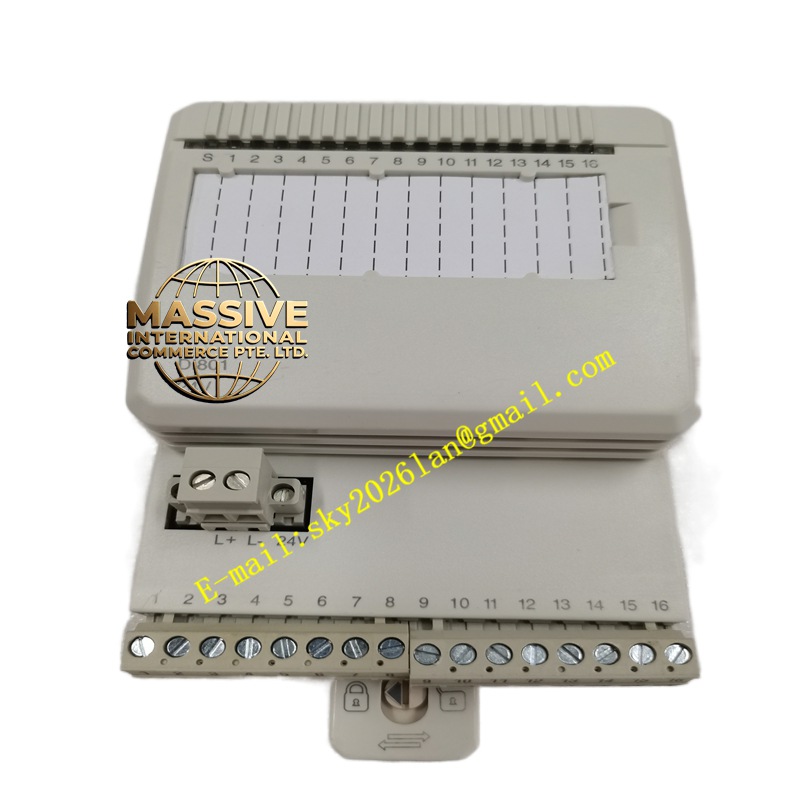

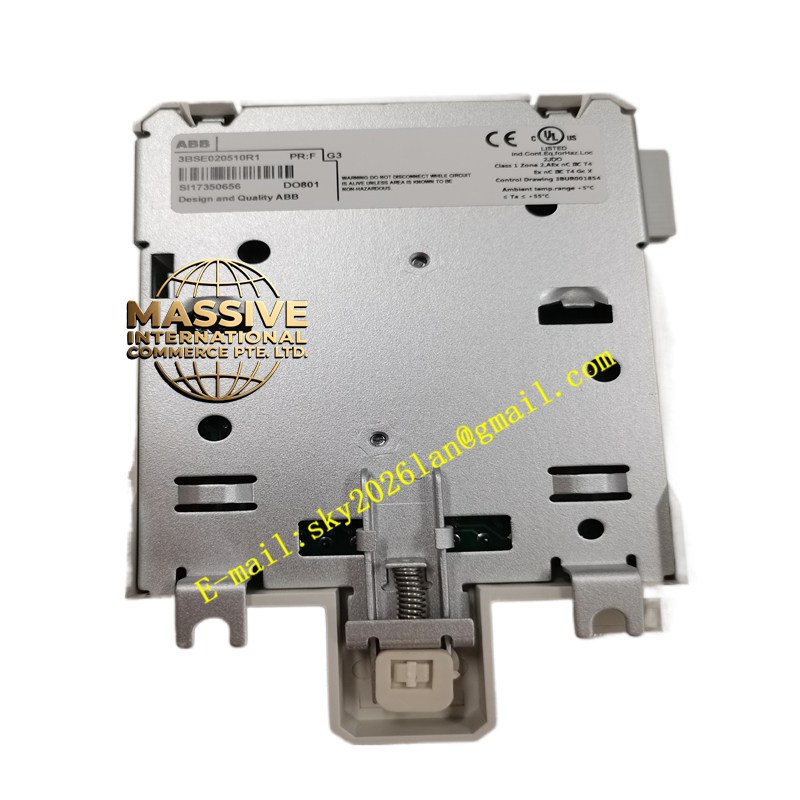

ABB D0801
Technical Specifications:
- Channels: 8 Digital Inputs / 8 Digital Outputs (configuration dependent).
- Voltage Rating: 24V DC.
- Response Time: Millisecond-level switching.
Functional Features:
- High-Speed Switching: Supports fast pulse counting and encoder inputs.
- Protection: Short-circuit and overvoltage protection on outputs.
- Status Indication: Individual LED indicators for each channel.
Application Scenarios:
- Machine Control: Interfacing limit switches, pushbuttons, and relays.
- Process Automation: Monitoring pump status and controlling solenoid valves.
Performance Parameters:
- Isolation: Opto-isolated channels for noise immunity.
- Load Capacity: Rated for standard industrial relay and solid-state loads.
Material Composition & Structural Features:
- Housing: Compact DIN-rail mountable enclosure.
- Terminals: Spring-clamp or screw terminals.
Working Principle:
Reads the state of field switches via opto-isolators and switches output transistors to control field devices based on PLC commands.
Installation Requirements:
- Mount on DIN rail and connect to the I/O bus.
- Wire field devices according to sinking/sourcing requirements.
Usage Precautions:
- Do not exceed maximum output current per channel.
- Use snubber circuits for inductive loads.
