Description

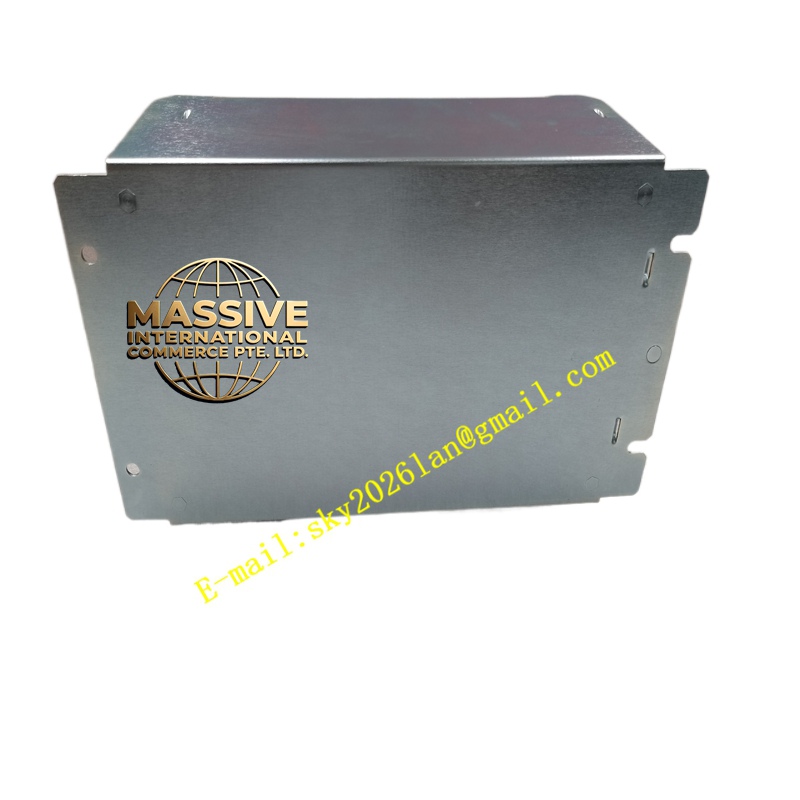

ABB DCF803-0035
Technical Specifications:
- Output Current Rating: 35 A DC
- Supply Voltage: 3-phase AC (max 500 V) or Single-phase AC (max 600 V)
- Weight: Approximately 6 kg
- Dimensions: Compact industrial form factor designed for mounting plates
Functional Features:
- Independent Excitation: Operates with its own synchronization, allowing it to be supplied from an independent auxiliary power network.
- Advanced Protection: Features comprehensive protection mechanisms, including overcurrent, overvoltage, and short-circuit protection, utilizing internal solid-state relays to rapidly isolate faults.
- High Flexibility: Offers extensive monitoring functions when paired with DCS800/DCS880 drive configurations.
Application Scenarios:
- Heavy-duty DC motor drives in metallurgy, paper manufacturing, and mining.
- Applications requiring precise field weakening or independent field control.
Performance Parameters:
- Regulation Precision: Maintains highly stable excitation current under dynamic load variations.
- Response Time: Fast-acting control loops for immediate torque response.
Material Composition & Structural Features:
- Enclosure: Robust metal housing with integrated cooling fins for thermal management.
- Terminals: High-current screw terminals (X100, X101) supporting cross-sections up to AWG 7.
Working Principle:
The module receives control signals from the main drive controller and converts incoming AC supply into a precisely regulated DC voltage. It continuously monitors the motor’s field current and adjusts the output via internal thyristors to maintain the exact excitation required for the desired motor performance.
Installation Requirements:
- Must be securely mounted on a flat, conductive mounting plate.
- Requires a minimum 5 mm diameter hole for the thermal sensor.
- Ensure adequate clearance for heat dissipation and proper M6 earthing connection.
Usage Precautions:
- Verify the supply voltage matches the module’s configuration parameters (e.g., parameters 28.63 and 42.68) before energizing.
- Strictly adhere to the specified maximum current limits to prevent irreversible damage to the internal power electronics.
