Description

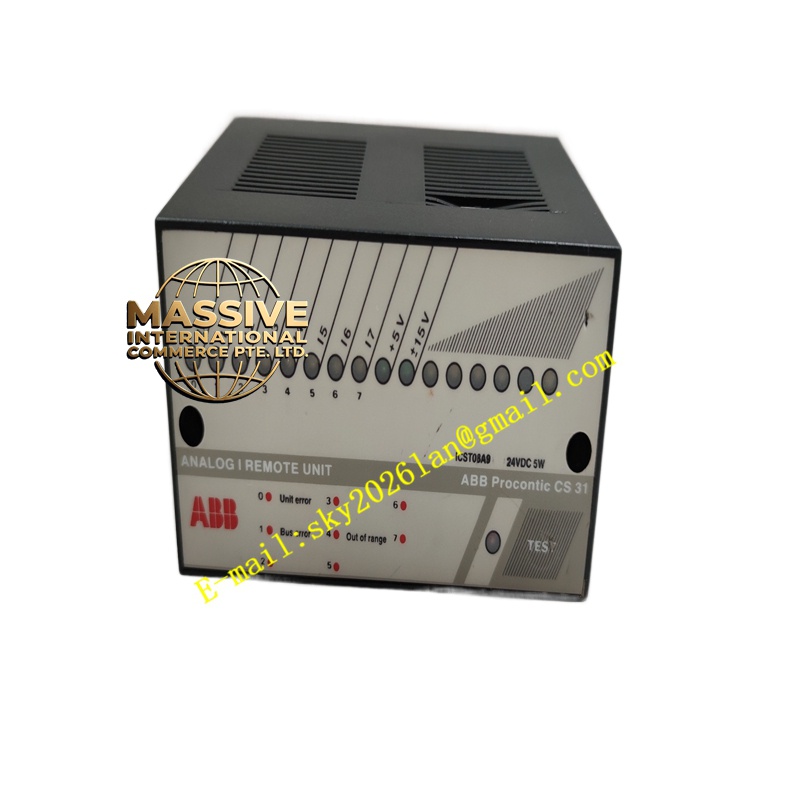

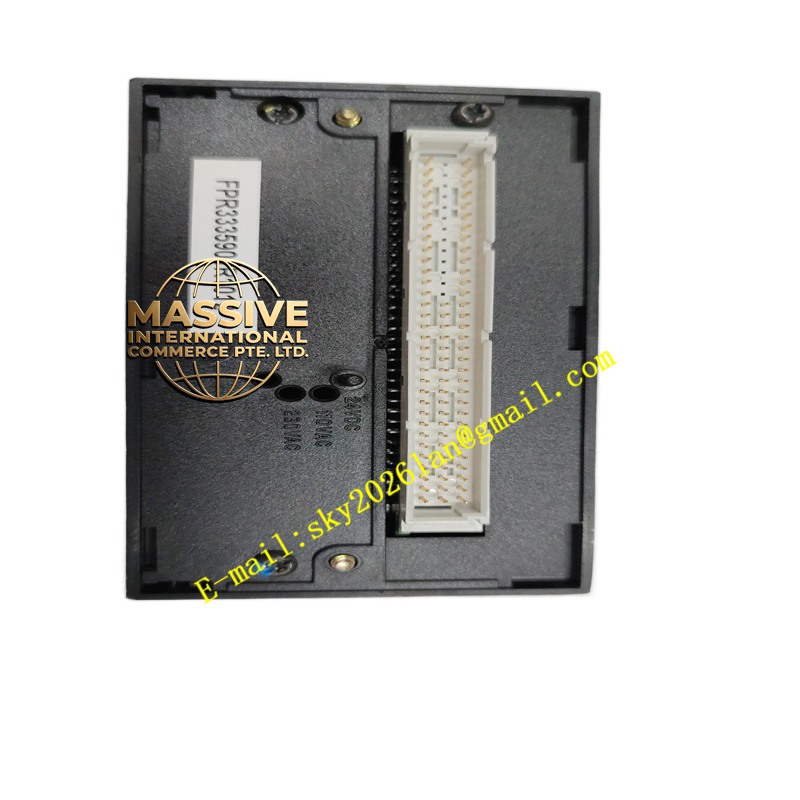

ABB ICST08A9
Technical Specifications:
- Brand: ABB
- Model: ICST08A9
Functional Features:
- Wiring Simplification: Provides clear, labeled termination points for field wires.
- Signal Routing: Efficiently routes signals to the appropriate I/O modules.
- Test Points: Includes built-in test points for easy troubleshooting without disconnecting wires.
Application Scenarios:
Field termination panels, marshalling cabinets, and distributed I/O stations.
Performance Parameters:
- Current Rating: Rated for standard industrial control currents.
Material Composition & Structural Features:
- Terminals: High-quality, vibration-resistant screw or spring terminals.
- Labeling: Integrated label strips for wire identification.
Working Principle:
Acts as a passive electrical bridge, connecting external field wiring to the internal control system bus through standardized pinouts.
Installation Requirements:
Mount on DIN rail or panel. Torque terminal screws to manufacturer specifications to ensure reliable connections.
Usage Precautions:
Do not exceed the current rating of the terminals. Ensure wire ferrules are properly crimped to prevent loose connections.
