Description

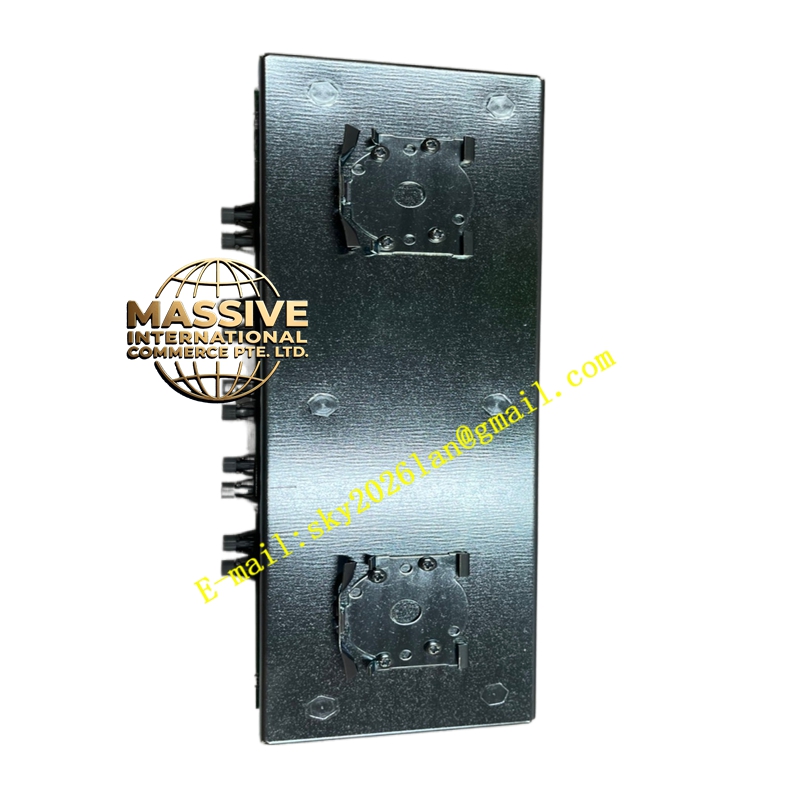

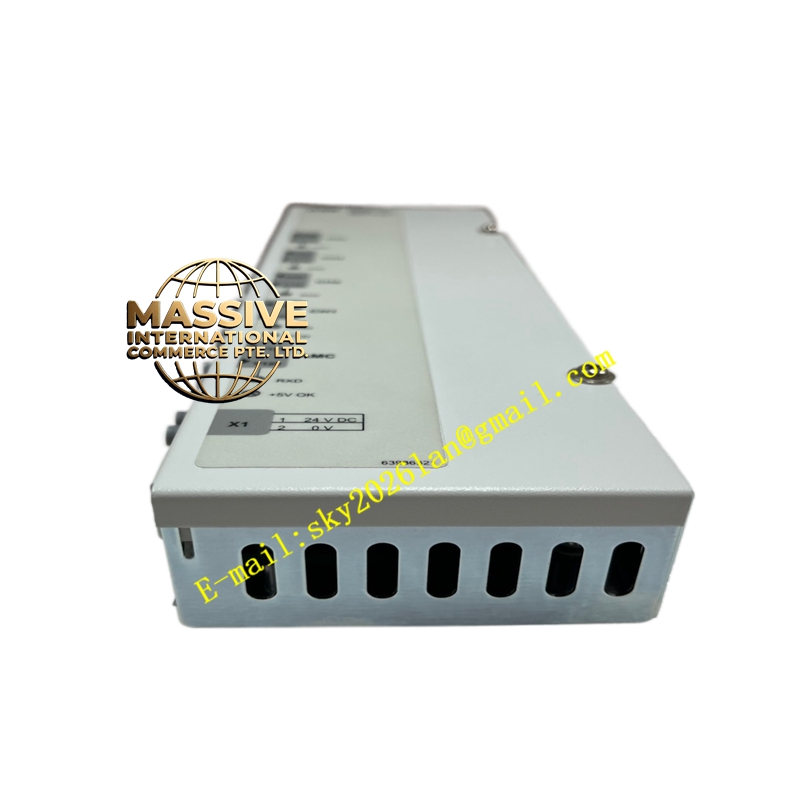

ABB NPBU-42C
Technical Specifications:
- Protocol: PROFIBUS DP (Master Class 1 and Class 2 capabilities).
- Physical Layer: RS-485 interface.
- Baud Rate: Configurable from 9.6 kbps up to 12 Mbps.
- Topology: Bus topology with termination.
- Addressing: Supports up to 126 nodes on a single segment.
Functional Features:
- High-Speed Cyclic Data: Supports fast cyclic data exchange for real-time process control.
- Acyclic Communication: Allows parameterization, diagnostics, and configuration of field devices during operation.
- Redundancy Support: Compatible with PROFIBUS redundancy protocols for enhanced system availability.
- Integrated GSD Manager: Simplifies the configuration and integration of third-party PROFIBUS devices.
Application Scenarios:
- Connecting ABB ACS800/ACS880 drives to the AC800M controller.
- Integrating distributed I/O stations (e.g., ABB S800 I/O) over long distances.
- Communicating with intelligent motor control centers (MCCs) and valve positioners.
- Retrofitting or expanding existing PROFIBUS infrastructure.
Performance Parameters:
- Bus Access: Optimized token passing and polling algorithms for deterministic cycle times.
- Data Volume: Supports large process data images for complex field devices.
- Diagnostics: Comprehensive bus diagnostics including station status, parameter faults, and cable breaks.
- Isolation: Galvanic isolation between the PROFIBUS port and the controller backplane.
Material Composition & Structural Characteristics:
- Connectors: Standard 9-pin D-sub connector for PROFIBUS cabling.
- Housing: Compact industrial module with DIN rail mounting.
- PCB: High-speed digital circuitry with ESD protection on the RS-485 transceiver.
- Indicators: LEDs for bus activity, fault status, and power.
Working Principle:
The NPBU-42C manages the PROFIBUS DP protocol stack. As a Master, it cyclically polls configured slave devices, sending output data and receiving input data within the defined bus cycle time. It also handles acyclic requests for device parameterization. The module translates PROFIBUS telegrams into the AC800M’s internal data format, mapping process variables directly to the controller’s application memory.
Installation Requirements:
- Cabling: Use dedicated PROFIBUS cable (A-type) with proper shielding and impedance characteristics.
- Termination: Activate termination resistors at both physical ends of the bus using the D-sub connector switches.
- Addressing: Assign unique PROFIBUS addresses to all nodes; ensure no duplicates exist.
- Grounding: Connect the PROFIBUS shield to the module’s ground terminal at both ends to ensure EMC compliance.
Usage Precautions:
- Baud Rate Consistency: All nodes on the bus must operate at the same baud rate.
- Cable Length: Adhere strictly to PROFIBUS cable length limits based on the selected baud rate.
- Device Database: Always use the correct GSD file for each slave device to ensure proper data mapping.
- Bus Faults: Use a bus analyzer to troubleshoot intermittent communication issues or signal reflections.
