Description

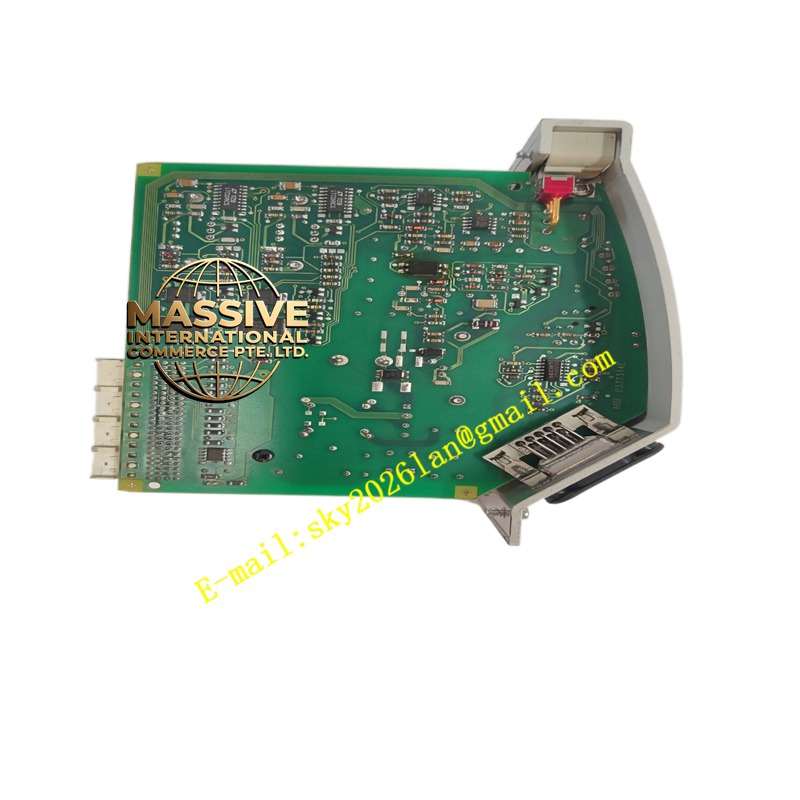

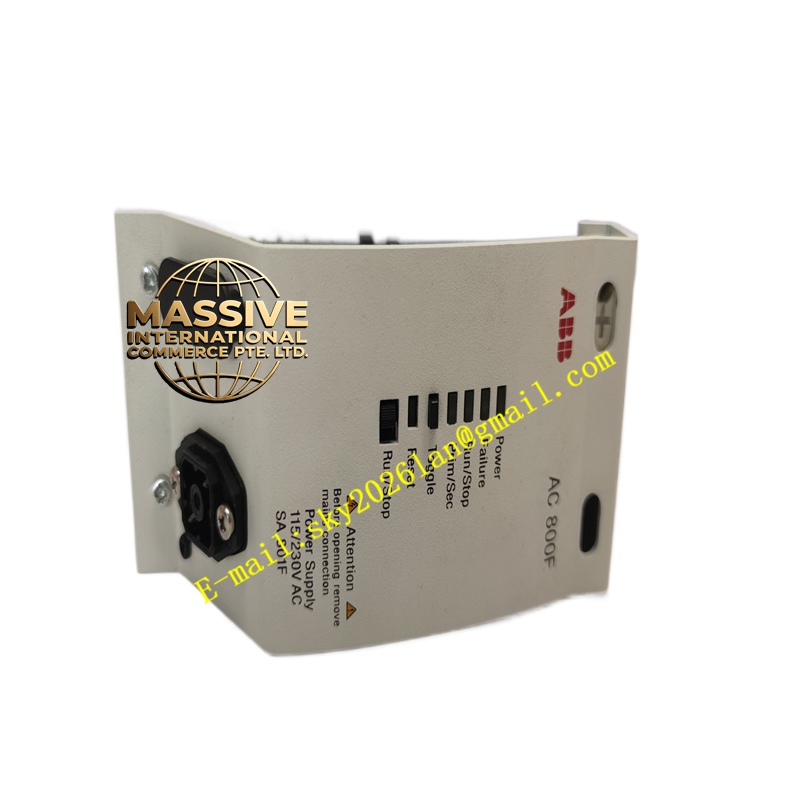

ABB SA801F
Technical Specifications:
- Output Voltage: Regulated 24 V DC (standard industrial control voltage).
- Input Voltage: Universal AC input range (typically 85-264 VAC).
- Protection: Over-voltage, over-current, short-circuit, and over-temperature protection.
- Efficiency: High-efficiency switching power supply design.
Functional Features:
- Stable Output: Low ripple and noise for sensitive control electronics.
- Power Good Signal: Provides a status output to indicate healthy power delivery.
- Wide Input Range: Accepts global AC voltages without manual configuration.
- Hot-Swappable: Supports redundant power configurations.
Application Scenarios:
- Primary power supply for ABB AC800M or S800 I/O systems.
- Powering distributed control panels and remote racks.
- Backup power for critical control infrastructure.
Material Composition & Structural Characteristics:
- Enclosure: Metal chassis with DIN rail mounting capability.
- Cooling: Convection-cooled design with internal heat sinks.
- Connectors: Heavy-duty screw terminals for secure AC input and DC output wiring.
Working Principle:
The SA801F rectifies the incoming AC voltage and uses high-frequency switching to step down and regulate the voltage to a precise 24 V DC output. Continuous feedback loops adjust the switching duty cycle to maintain stability despite input fluctuations or load changes.
Installation Requirements:
- Ensure adequate clearance around the unit for proper airflow and cooling.
- Use appropriately sized conductors for the DC output to minimize voltage drop.
- Connect the chassis ground terminal to a clean earth ground.
Usage Precautions:
- Do not exceed the rated output current; account for inrush currents of connected loads.
- Wait for internal capacitors to fully discharge before performing maintenance.
