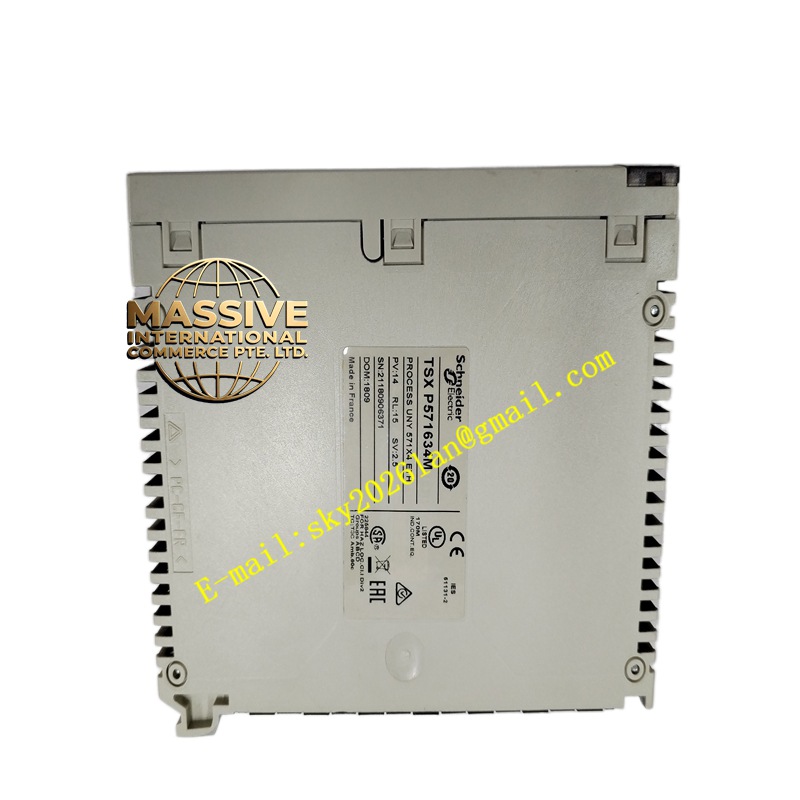

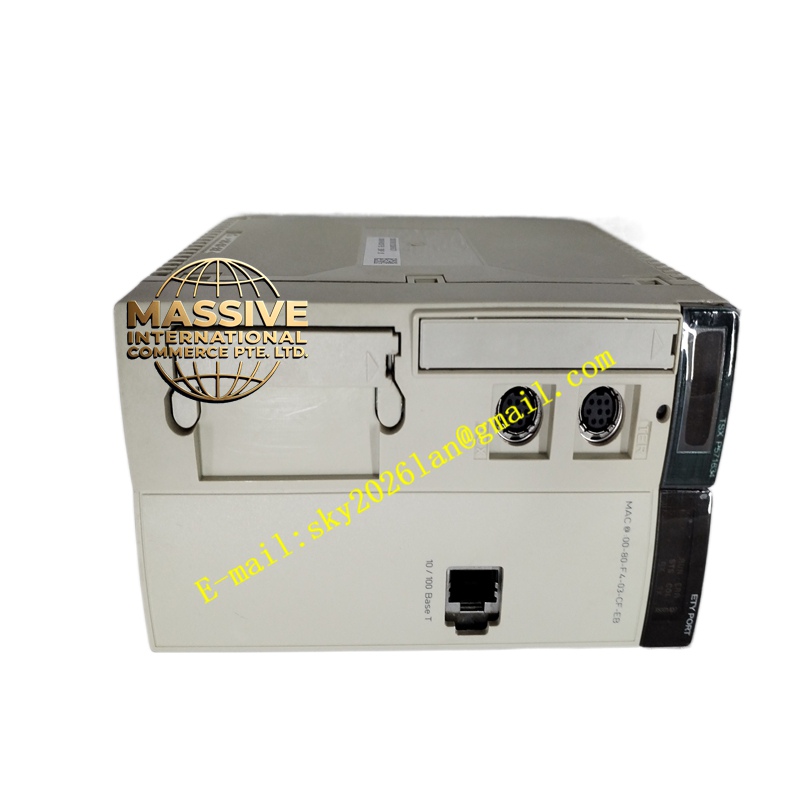

ABB TSXP571634M
Technical Specifications:
- Processor Type: Premium series CPU with integrated memory.
- Memory Capacity: Integrated RAM and Flash memory for program and data storage.
- Communication Ports: Integrated TSX Micro (Mini DIN) and TSX Premium (DB9) ports.
- Expansion: Supports up to 7 local or distributed I/O racks via the Premium bus.
Functional Features:
- High-Speed Processing: Fast instruction execution for complex logic and math operations.
- Integrated Communications: Built-in Uni-Telway and Modbus communication capabilities.
- Flexible I/O Architecture: Supports mixed digital and analog I/O modules.
- Real-Time Clock: Integrated RTC for time-stamping and scheduling.
Application Scenarios:
- Complex manufacturing process control.
- Water and wastewater treatment plant automation.
- Material handling and conveyor systems.
Material Composition & Structural Characteristics:
- Enclosure: Ruggedized industrial plastic housing with DIN rail mounting.
- Connectors: Integrated communication ports and backplane connector.
- Indicators: System status, run/stop, and fault LEDs.
Working Principle:
The CPU executes the user program stored in memory, scanning inputs, processing logic, and updating outputs in a continuous cycle. It communicates with I/O modules via the backplane bus and with external systems via integrated serial ports.
Installation Requirements:
- Mount on a standard DIN rail in a ventilated control panel.
- Connect the backplane bus connector securely.
- Configure communication parameters using PL7 Pro or Unity Pro software.
Usage Precautions:
- Ensure the power supply voltage matches the CPU requirements.
- Maintain proper grounding to prevent communication errors.
