Description

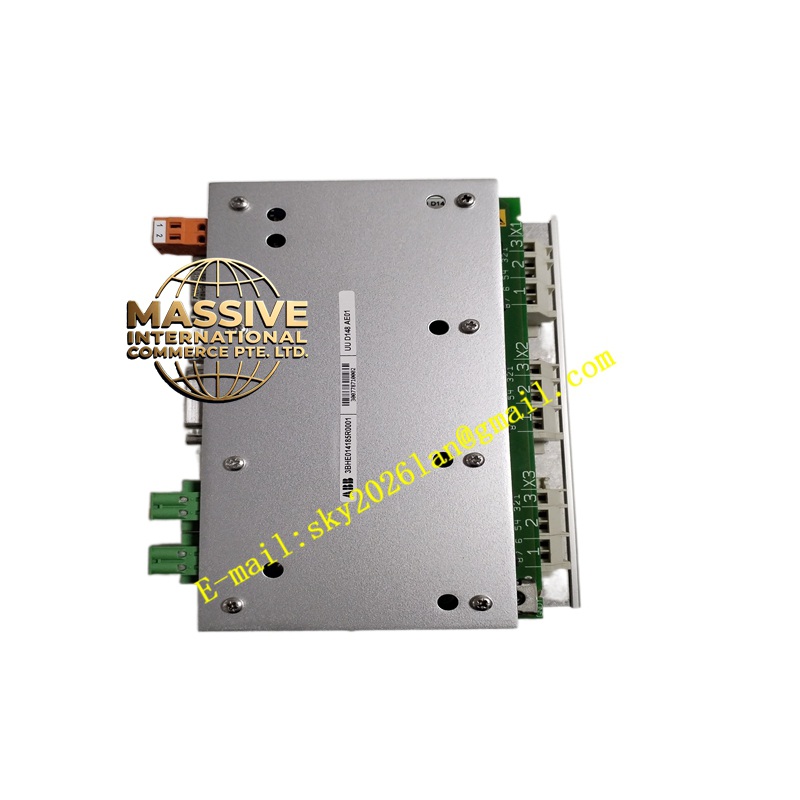

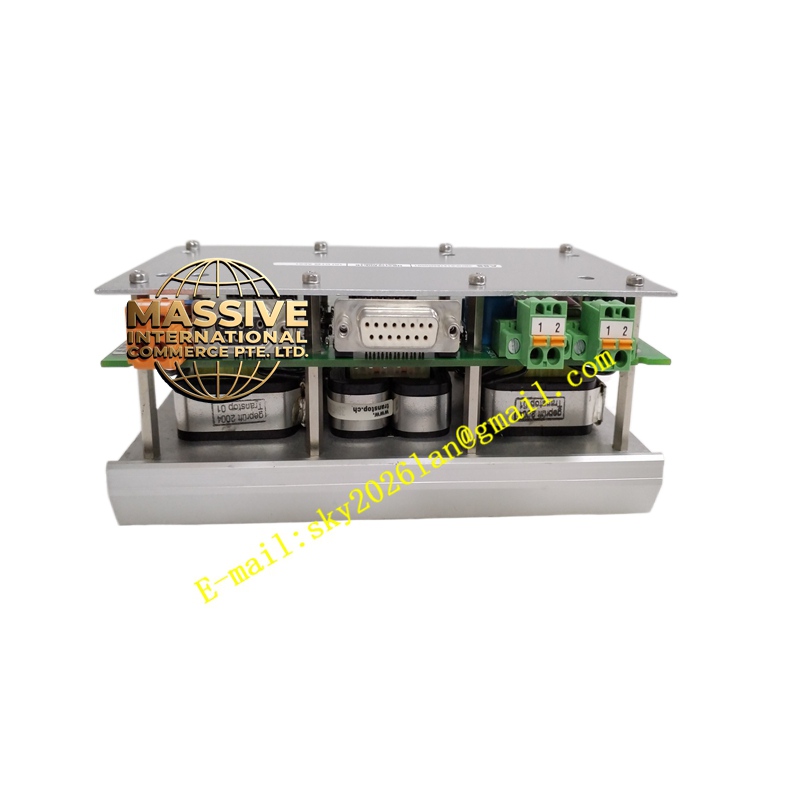

ABB UUD148AE01
Technical Specifications:
- Signal Type: High-precision analog voltage measurement.
- Measurement Range: Calibrated for standard industrial voltage levels (e.g., 100V and 200V scales).
- Output Signal: Standardized analog output proportional to the measured voltage.
- Power Supply: Integrated low-voltage DC power requirement.
Functional Features:
- High-Accuracy Sensing: Provides precise voltage feedback for closed-loop control systems.
- Galvanic Isolation: Ensures complete electrical isolation between the high-voltage measurement circuit and the low-voltage control logic.
- Fast Dynamic Response: Capable of tracking rapid voltage fluctuations in real-time.
- Built-in Protection: Features safeguards against over-voltage and transient spikes.
Application Scenarios:
- Voltage monitoring in ABB variable frequency drives (VFDs) and inverters.
- Industrial motor control centers and power distribution panels.
- Renewable energy conversion systems.
Performance Parameters:
- Accuracy Class: High-precision industrial grade.
- Response Time: Millisecond-level dynamic tracking.
- Operating Temperature: Rated for standard industrial ambient conditions.
Material Composition & Structural Characteristics:
- Enclosure: Compact, flame-retardant industrial plastic housing.
- Internal Components: High-quality precision resistors and operational amplifiers.
- Connectors: Standardized PCB pin headers or industrial plug-in terminals.
Working Principle:
The board utilizes a precision resistor divider network to step down the high-voltage input to a safe, measurable level. The conditioned signal is then processed and isolated before being output as a standardized analog signal to the main controller for system regulation.
Installation Requirements:
- Must be securely mounted on the designated backplane or DIN rail within the control cabinet.
- High-voltage input wiring must be routed separately from low-voltage signal cables.
- Ensure all grounding connections are properly tightened.
Usage Precautions:
- Never exceed the maximum rated input voltage to prevent permanent damage.
- Always de-energize the system before installing or replacing the board.
- Handle with ESD precautions to protect sensitive internal components.
