Description

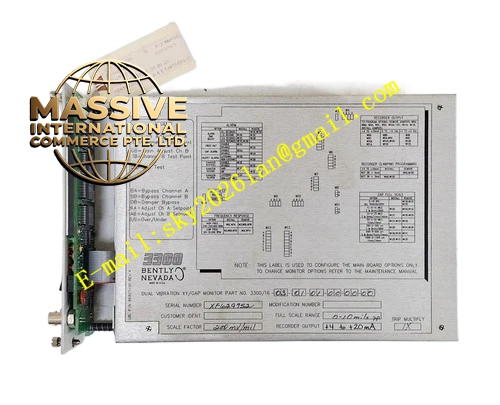

Bently 3300 16-14-01-03-00-00-01
Technical Specifications
- Model: 3300/16-14-01-03-00-00-01
- Manufacturer: Bently Nevada
- Channels: Dual independent monitoring channels
- Origin: USA
Functional Features
- Continuous Online Monitoring: Provides continuous online status monitoring and protection for equipment, effectively detecting and preventing false trips of rotating machinery.
- Flexible Installation: Supports face mounting, 19-inch EIA rack mounting, panel mounting, and standalone installation to adapt to different control cabinet requirements.
- Multi-Sensor Compatibility: Seamlessly receives signals from various compound sensors and standard Bently sensors.
Application Scenarios
Widely used for online monitoring and protection of shaft vibration, casing vibration, and axial displacement in large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, and generators.
Performance Parameters
- Dimensions: 20 cm × 20 cm × 10 cm
- Weight: 0.55 kg
- Display Compatibility: Each 3500 rack can connect up to two monitors for data display.
Material Composition
Constructed with industrial-grade high-strength flame-retardant plastic housing. Internal circuit boards undergo strict tri-proof coating treatment, providing excellent vibration and shock resistance.
Structural Characteristics
Modular design with clear channel status and alarm indicator LEDs on the front panel, and standardized backplane connectors on the rear.
Working Principle
Receives analog voltage signals from the proximitors, digitizes them via internal high-precision A/D converters. The microprocessor calculates the vibration amplitude based on preset algorithms and compares it with user-defined alarm thresholds to trigger corresponding protection actions.
Installation Requirements
Can be inserted into standard 3300 series frameworks or 19-inch EIA racks. Sensor wiring must use shielded cables, and proper grounding of the proximitors and rack must be ensured.
Precautions for Use
Accurately input sensor sensitivity parameters during configuration. Record original settings before replacing the module. Never forcefully insert or remove non-hot-swappable components while powered on.
