Description

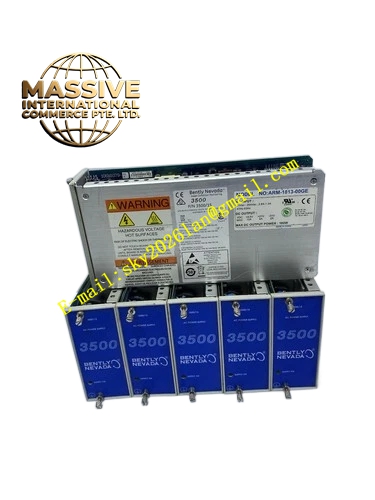

Bently 3500 15
Technical Specifications
- Model: 3500/15
- Input Voltage: Wide-range AC/DC input support
- System Compatibility: 3500 Series Machinery Protection System
Functional Features
- Redundant Power Support: Supports single or dual power supply configurations for seamless failover and zero downtime.
- Wide Voltage Compatibility: Accepts a broad range of input voltages and includes standard line noise filtering.
- Self-Monitoring: Features built-in diagnostics to continuously verify output voltage integrity.
Application Scenarios
Deployed in all 3500 system control cabinets across power generation, oil and gas, and petrochemical facilities as the foundational power source.
Performance Parameters
- Supply Mode: Single or redundant dual supply
- Status Indication: Front-panel green LED indicating “Supply OK”
- Operating Temperature: -30°C to +65°C
Material Composition
Constructed with high-reliability industrial-grade electronic components and a robust enclosure providing excellent electromagnetic shielding.
Structural Characteristics
Half-height modular design that must be installed in the specially designated left-side slots of the 3500 frame. Supports hot-swapping.
Working Principle
Utilizes an internal switching power supply circuit to convert wide-range external AC/DC power into standardized internal low-voltage DC, distributing it via the backplane bus to all functional modules.
Installation Requirements
Must be installed in the designated power supply slots on the left side of the 3500 rack. When installing two power supplies, the upper slot is primary and the lower is secondary.
Precautions for Use
Verify input voltage matches the module’s rated specifications. Never remove both power supplies simultaneously while the system is energized.
