Description

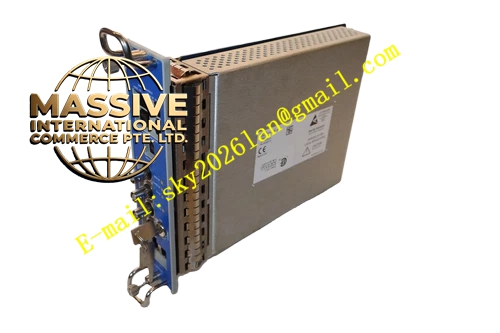

Bently 3500/32-01-00
Technical Specifications
- Module Type: 4-Channel Relay I/O Module
- Configuration Code: 01-00 (Standard Configuration)
- Channel Count: 4 independent relay outputs
- Slot Placement: Any available monitor slot (right of TDI)
Functional Features
- Industry Standard: The baseline relay module for the 3500 platform, widely supported and documented.
- Plug-and-Play: Fully compatible with 3500 Rack Configuration Software without requiring special hardware jumpers.
- Reliable Switching: Proven performance in thousands of installations worldwide for driving external control circuits.
Application Scenarios
Standard deployment for any 3500 system requiring physical relay outputs for plant DCS integration, annunciator panels, and local machinery protection.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity: 95% non-condensing
Material Composition
Industrial-grade electromechanical relays with gold-plated contacts for reliable low-level signal switching. Anti-vibration potting compounds are used internally.
Structural Characteristics
Full-height module with front-panel LEDs indicating the status of each of the four relay channels and overall module health.
Working Principle
Continuously monitors the backplane for configured trigger conditions. When a condition is met, the internal microcontroller changes the state of the SPDT contacts to接通 or disconnect external circuits.
Installation Requirements
Install in any available monitor slot. Ensure external wiring is properly terminated and torqued to specification.
Usage Notes
Verify the contact rating does not exceed the module specifications. Configure the correct alarm logic (AND/OR) via the 3500 Rack Configuration Software.
