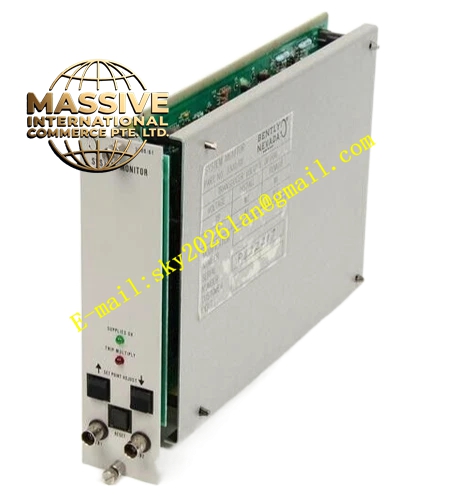

Bently 3500/92‑01‑00‑00‑00
Technical Specifications:
- Communication interface: RJ45 10BASE‑T Ethernet, serial RS232 / RS422 / RS485
- Supported protocol: Modbus RTU(serial), Modbus‑TCP(Ethernet), Bently Nevada proprietary protocol
- Power consumption: 5.0W typical
- Operating temperature: ‑30°C ~ +65°C
- Storage temperature: ‑40°C ~ +85°C
- Weight: 0.82kg
- Dimension: 241mm × 24.4mm × 242mm
- Safety rating: SIL‑2 functional safety certification, CE, UL certification Functional Features:
- Collect all channel measuring value, alarm status, rack health status, event log data from 3500 rack internal backplane bus
- Support configurable Modbus register mapping function, user can customize data register table according to project requirement
- Simultaneous multi‑protocol communication, support connection with configuration software and plant DCS system at same time
- Complete self‑diagnosis of gateway hardware, communication link fault, report communication failure status to rack system
- Support remote configuration download for whole rack via Ethernet interface
- Transmit vibration, temperature, speed, gap value and all alarm trip status to upper‑level automation system Application Scenarios: All projects deployed 3500 machinery protection rack in power plant, petrochemical, oil‑gas field; realize data exchange between TSI protection rack and DCS/SCADA system; remote configuration and diagnostic access for machinery protection system; data uploading for predictive maintenance platformBaker Hugh… Performance Parameters: Real‑time cyclic data acquisition from rack bus; configurable Modbus register mapping; stable long‑term communication operation under industrial electromagnetic interference environment; support remote configuration access Material Composition: Front panel: Anodized aluminum alloy; mainboard: Industrial FR‑4 printed circuit board; Ethernet physical layer chip, serial communication driving chip, industrial‑grade MCU; gold‑plated high‑density backplane connector for rack bus interconnection Structural Characteristics: Full‑height front plug‑in card for 3500 rack single slot installation; front panel equipped with RJ45 Ethernet port, serial terminal block and communication status LED indicator lights; rear high‑density connector connects with rack backplane bus; locking screw for anti‑vibration mechanical fixation Working Principle: The gateway module obtains all real‑time data and status information of each monitoring module through 3500 rack internal backplane bus. Internal firmware packages these data according to Modbus or proprietary protocol rules, responds to read‑write request from external upper system via Ethernet or serial port. It also receives configuration command from 3500 configuration software, forwards configuration parameters to every monitoring module via rack internal bus, completes system remote parameter downloading。 Installation Requirements:
- Wear anti‑static wrist strap during installation, insert module into free front slot of 3500 rack
- Ethernet cable uses shielded twisted‑pair cable for industrial network, single‑point shield grounding
- Serial communication wiring follow RS485 bus terminal matching requirement, install terminal resistor for bus end‑point
- Assign correct IP address and Modbus slave address by configuration software after hardware installation
- Verify rack firmware version compatibility before commissioning Usage Precautions:
- Do not connect non‑industrial‑grade network equipment to gateway Ethernet port; isolate gateway network from office network for cybersecurity
- Set proper Modbus register mapping, avoid excessive register quantity causing communication delay
- Observe communication LED indicator status, troubleshoot link fault promptly for communication abnormal
- Back‑up gateway and whole rack configuration file
- Prevent surge voltage access to serial and Ethernet interfaces
