Description

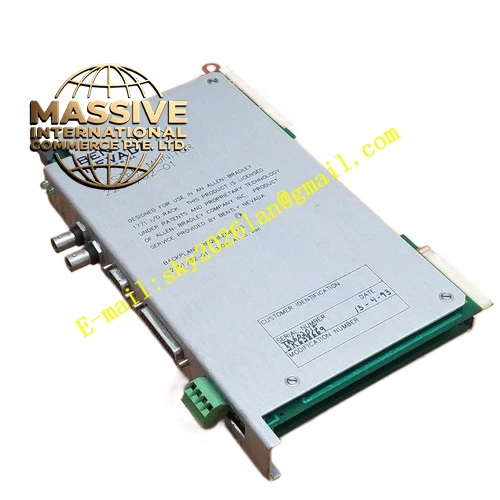

Bently 3500/94M
Technical Specifications
- Module Type: Enhanced VGA Display Module (M-Series)
- Display Type: Color VGA Graphical Display
- Slot Placement: Any available monitor slot
- Communication: Backplane integration with 3500 rack
Functional Features
- Enhanced Processing: Faster graphical rendering and improved internal diagnostics.
- Advanced Diagnostics: Provides more detailed internal health monitoring and module fault detection.
- Backward Compatibility: Fully supports existing 3500 M-series monitors and System 1 software.
Application Scenarios
Ideal for modernizing existing 3500 systems, new installations requiring advanced graphical diagnostics, and facilities utilizing predictive maintenance analytics.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity Tolerance: 95% non-condensing
Material Composition
Next-generation microprocessors and high-reliability electronic components with enhanced thermal management.
Structural Characteristics
Standard full-height module with updated front-panel LED logic for enhanced status visibility and diagnostic feedback.
Working Principle
Utilizes upgraded firmware and hardware to efficiently render graphical data and provide real-time module health feedback to the host system.
Installation Requirements
Install in any available monitor slot. Ensure the 3500 Rack Configuration Software version supports the 94M module.
Usage Notes
When replacing a legacy 3500/94 with a 94M, verify that the system firmware is updated to recognize the enhanced module.
