Description

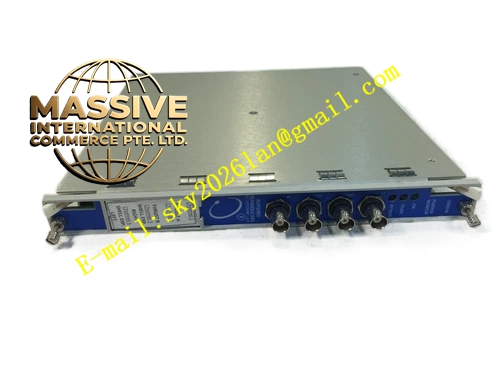

Bently IPSYSO1
Technical Specifications
- Part Number: IPSYSO1
- System Compatibility: Bailey INFI-90 / ABB Harmony Rack
- Output Rails: +5V, +15V, -15V, and +25.5V DC
Key Features
- Seamless Interchangeability: Fully compatible with standard IPSYS01 slots and backplane specifications.
- Fault Isolation Support: Works in tandem with the IPMON01 Power Monitor module to identify and isolate faulty power rails.
- Robust Design: Built to withstand severe industrial environments, including temperature fluctuations and electrical noise.
Application Scenarios
Used in legacy DCS infrastructure where maintaining the original power supply specifications is critical for avoiding costly system-wide upgrades.
Performance Parameters
- Power Capacity: 260 Watts continuous output
- Hold-Up Time: Sufficient energy storage to ride through brief micro-power interruptions.
Material Composition
Industrial-grade printed circuit boards with conformal coating, housed in a durable metal chassis for maximum mechanical protection.
Structural Characteristics
Standard half-height or full-height module profile (depending on specific rack generation) with precision-machined guide rails and gold-plated backplane connectors.
Working Principle
Acts as a high-efficiency DC power supply, utilizing solid-state switching to convert and regulate power, distributing it to the internal logic and external field interfaces.
Installation Requirements
Follow strict ESD (Electrostatic Discharge) protocols during handling. Ensure the module is fully seated and locked into the backplane before applying power.
Usage Precautions
If the module exhibits a “green flashing” LED, it indicates a DC overcurrent condition. Do not continuously reset the module; instead, systematically remove I/O cards to locate the short circuit.
