Description

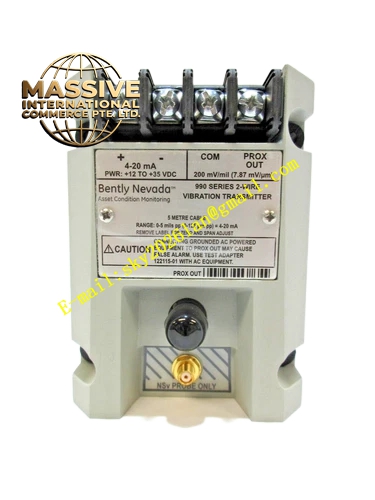

Bently Nevada 3300/20-03-01-01-00-00
Technical Specifications:
- Probe Diameter: 11mm
- Linear Range: 4mm (160 mils)
- Sensitivity: 3.94 V/mm (100 mV/mil)
- Frequency Response: 0–8 kHz
- Power Supply: -23 VDC to -26 VDC
- Output Impedance: 50 ohms
- Operating Temperature: 0°C to +45°C (standard calibration conditions)
Functional Features:
- Same core measurement capabilities as the 3300/20-01-01-01-00-00
- Full component interchangeability within the 3300 XL 11mm system
- ClickLoc, TipLoc, and CableLoc patented connection technologies
- RFI/EMI immunity meeting CE standards
- SpringLoc terminal strips for convenient field wiring
- Compatible with 3500 monitoring system modules
Application Scenarios:
- Axial displacement and differential expansion measurement
- Reciprocating compressor rod position monitoring
- Tachometer and zero speed applications
- Steam turbine ramp differential expansion monitoring
Performance Parameters:
- Measurement accuracy: ±5% of full scale
- Frequency coverage: 0–8 kHz
- Temperature stability across full operating range
Material Composition:
- Stainless steel probe housing
- Gold-plated brass ClickLoc connectors
- Shielded coaxial cable construction
Structural Features:
- 11mm probe with extended linear range
- Multiple thread options for flexible mounting
- Proximitor available in DIN-rail or panel mount
Working Principle:
Eddy current non-contact measurement — high-frequency electromagnetic field from the probe coil induces eddy currents in the conductive target, changing coil impedance proportionally to gap distance. The Proximitor converts this to a linear DC voltage output.
Installation Requirements:
- Match extension cable length to Proximitor system length designation
- Set initial gap at linear range midpoint
- Verify output voltage at calibrated position
- Route signal cables away from power cables
Usage Notes:
- Verify specific configuration options encoded in the part number match application requirements
- Compatible with 3500 monitoring system with appropriate software version
- All components must be 3300 XL 11mm family for guaranteed interchangeability
