Description

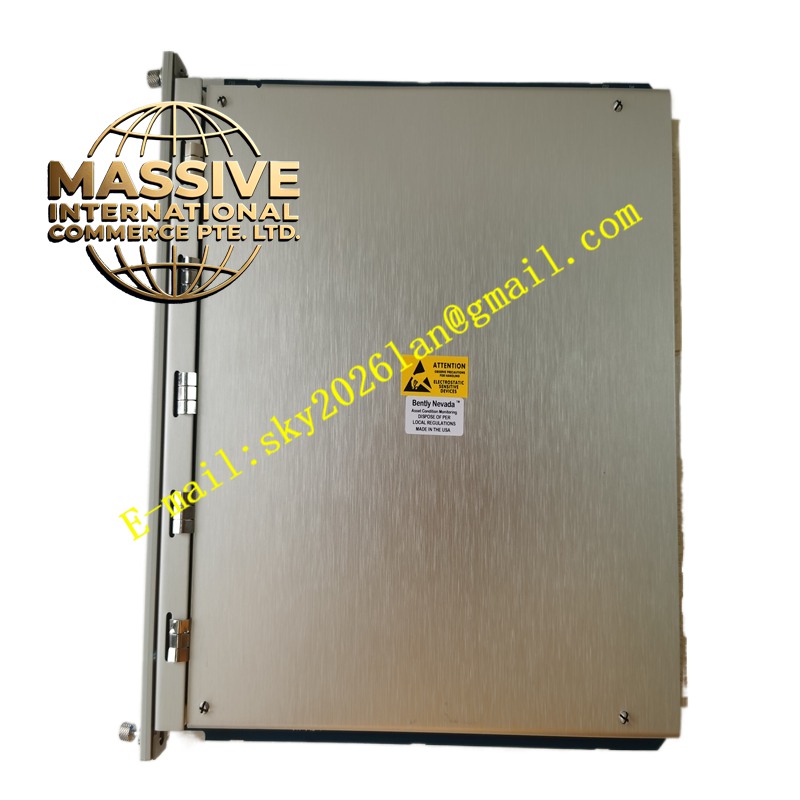

Bently Nevada 3500/42M-05-00 135489-02
Technical Specifications:
- Module Type: I/O module with internal safety barriers and internal terminations
- Channels: 4 channels
- Safety Barrier Type: Internal zener safety barrier, one barrier module per channel pair
- Dimensions: 241.3 mm × 24.4 mm × 163.1 mm
- Weight: 0.46 kg
- Operating Temperature: 0°C to +65°C
- Storage Temperature: -40°C to +85°C
- Humidity: 95%, non-condensing
- Channel Isolation: High isolation effectively suppressing ground loops, electromagnetic interference, and surge transients
Functional Features:
- Integrated internal safety barriers eliminate need for external barriers
- Suitable for intrinsic safety applications with direct connection to hazardous area sensors
- Provides four-channel proximity probe and seismic sensor signal conditioning
- Three variants available: four-channel proximity probe, two-channel proximity probe plus two-channel seismic sensor, four-channel seismic sensor
- High interference immunity with industrial-grade design resisting electromagnetic and radio frequency interference
- Requires 3500 Grounding Module to provide intrinsic safety ground connection
Application Scenarios:
- Oil and gas industry hazardous area rotating equipment vibration monitoring
- Petrochemical explosive environment compressor and pump monitoring
- Chemical industry intrinsic safety required equipment monitoring
- Any application requiring proximity probe or seismic sensor monitoring in hazardous areas
- Zone 1 and Zone 2 hazardous areas and Class I Division 2 areas
Performance Parameters:
- Input Signal Range: Determined by sensor type
- Safety Barrier Protection: Zener safety barriers limiting energy transfer to hazardous areas
- Signal Conditioning: Dedicated conditioning circuits for proximity probes and seismic sensors
- Accuracy: Meets 3500 system standard accuracy requirements
Material Composition:
- Housing: Industrial-grade metal enclosure
- Safety Barriers: Internal zener diode safety barrier modules
- Circuit Board: Multi-layer printed circuit board
- Connectors: Internal termination direct connection
Structural Characteristics:
- Full-height module design occupying one rear slot
- Internal integration of two zener safety barrier modules, one per channel pair
- Internal termination design eliminating need for external terminal blocks
- Modular design supporting field replacement
Working Principle: The module receives signals from hazardous area sensors, and internal zener safety barriers limit energy transfer to the hazardous area to ensure that even under fault conditions the energy level will not ignite explosive atmospheres. The safety barriers pass signals to the main monitoring module for processing and analysis. Each sensor must be individually connected to the safety barrier I/O module to ensure effective safety protection.
Installation Requirements:
- Install in the rear slot corresponding to the 3500/42M main module
- Must use 3500 Grounding Module to provide intrinsic safety ground connection
- Each sensor must be individually connected to the module, sharing lines is prohibited
- Ensure rack grounding system meets intrinsic safety requirements
- Follow relevant explosion protection standards and installation codes when used in hazardous areas
Use Precautions:
- This module is suitable for Zone 1 and Zone 2 hazardous areas and Class I Division 2 areas
- For Zone 0 areas, consult specific product certification documents for applicability
- External safety barriers are not required, but internal safety barrier function cannot be bypassed
- Inspect grounding connection status regularly to ensure reliable intrinsic safety grounding
- Replace module only with identical model
- Internal safety barrier I/O modules can coexist with standard I/O modules in same rack
