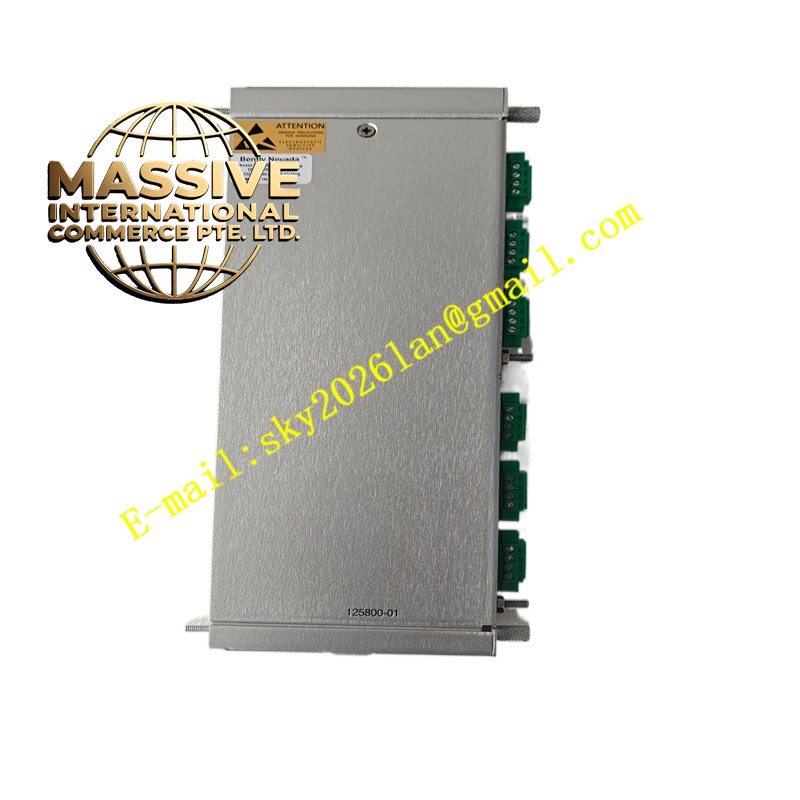

Bently Nevada 3500/60-01-00 133819-01
Technical Specifications:
- Channels: 6 temperature input channels
- Input Types: RTD and thermocouple inputs
- RTD Current Source: 925 ± 15 microamperes per sensor
- Input Impedance: Greater than 10 megohms per lead
- Recorder Output: +4 to +20 mA per channel proportional to full scale
- Voltage Compliance: 0 to 12 VDC, load 0 to 600 ohms
- Accuracy: ±3°C at 25°C
- Power Consumption: 7 watts nominal
- Operating Temperature: Industrial operating conditions
- Dimensions: 2.6 cm × 11.2 cm × 24.2 cm
- Weight: 0.4 kg to 0.46 kg
Functional Features:
- Six-channel design supporting mixed RTD and thermocouple inputs
- Non-isolated internal termination design simplifies installation
- Front panel LEDs: OK, TX/RX, Bypass
- Recorder output: +4 to +20 mA proportional to full scale
- High accuracy temperature measurement for motors, transformers, heaters, and other equipment
- Compatible with 3500/60 and 3500/61 temperature monitors
- Supports multiple RTD and thermocouple types
Application Scenarios:
- Motor bearing temperature monitoring
- Transformer winding temperature monitoring
- Heater temperature control
- Process equipment temperature monitoring
- Any industrial application requiring multi-point temperature monitoring
Performance Parameters:
- Supported Thermocouple Types:
- Type E: -100°C to +1000°C
- Type J: 0°C to +760°C
- Type K: 0°C to +1370°C
- Type T: -160°C to +400°C
- Supported RTD Types:
- 100 ohm 3-wire and 4-wire platinum (alpha=0.00385): -200°C to +850°C
- 100 ohm 3-wire and 4-wire platinum (alpha=0.00392): -200°C to +700°C
- 120 ohm 3-wire nickel: -80°C to +260°C
- 10 ohm 3-wire copper: -100°C to +260°C
- Update Rate: Meets 3500 system standard
- Alarm Function: User-programmable Alert and Danger alarm setpoints
Material Composition:
- Housing: Industrial-grade metal enclosure
- Circuit Board: Multi-layer printed circuit board
- Connectors: Internal termination direct connection
Structural Characteristics:
- Module design occupying one rear slot
- Internal termination design eliminating need for external terminal blocks
- Front panel status LEDs
- Modular design supporting field replacement
Working Principle: The module receives temperature signals from RTD or thermocouple sensors through internal terminations. For RTD inputs, the module provides constant current excitation, measures resistance changes, and converts to temperature values. For thermocouple inputs, the module measures thermoelectric potential and converts to temperature values. Internal circuits amplify, linearize, and temperature-compensate the signals, then transfer processed data to the main monitoring module for alarm determination and display.
Installation Requirements:
- Install in rear slot corresponding to 3500/60 main module
- RTD sensors must use 3-wire or 4-wire connection to eliminate lead resistance effects
- Thermocouple sensors must use compensation wire connections to ensure measurement accuracy
- Ensure sensor wiring is correct with proper polarity
- Maintain appropriate spacing from high-voltage power cables
Use Precautions:
- This non-isolated module is not suitable for applications requiring channel-to-channel isolation
- For applications requiring 250 VDC channel-to-channel isolation, select the thermocouple isolated version
- Global industrial standard and recommended material is platinum RTD with alpha=0.00385
- Using external safety barriers can extend low temperature measurement range to -50°C
- When used in TMR configuration, temperature monitors must be installed in groups of three side by side
- Inspect sensor wiring status regularly to ensure reliable connections
- Replace module only with identical model
