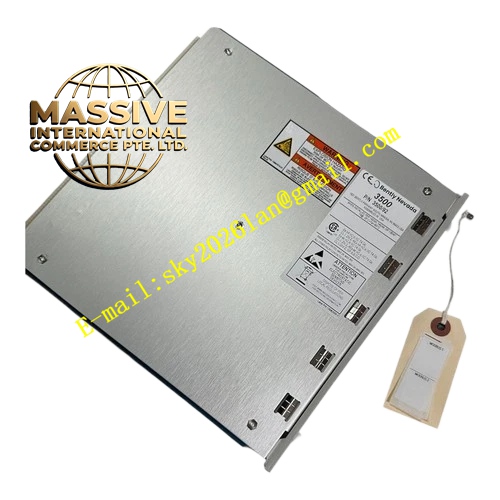

Bently Nevada 3500/92-03-01-00 (136188-01)
Technical Specifications:
- Product Series: 3500 Machinery Protection System
- Module Type: Communication Gateway I/O Module
- Part Number: 136188-01
- Communication Interfaces: Ethernet TCP/IP (10BASE-T) and RS232 serial
- Supported Protocols: Modbus RTU, Modbus/TCP, Bently Nevada proprietary protocol
- Compatible Front Module: 3500/92 Communication Gateway
Functional Features:
- Provides extensive communication capabilities for all rack monitored values and statuses
- Supports integration with process control and automation systems using both Ethernet TCP/IP and serial RS232 communications
- Permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software
- Supports Modicon Modbus protocol through serial communication
- Supports Modbus/TCP for TCP/IP Ethernet communication
- Supports proprietary Bently Nevada protocol for communication with 3500 framework configuration and data acquisition software packages
- Features configurable Modbus register functionality, providing the same capability as initial value registers
- Connects to 10BASE-T star topology Ethernet networks via RJ45 connector
Application Scenarios:
- Integration of 3500 monitoring data with plant DCS or SCADA systems
- Remote data transmission to PLC or上位机 systems through Modbus protocols
- Connection to Bently Nevada System 1 condition monitoring and diagnostic analysis software
- Centralized monitoring of multiple 3500 racks in large industrial facilities
- Power generation, oil and gas, petrochemical, and process industry applications
Performance Parameters:
- Ethernet Interface: 10BASE-T via RJ45 connector
- Serial Interface: RS232
- Protocol Support: Modbus RTU, Modbus/TCP, Bently Nevada proprietary protocol
- Data Types: All monitored values, alarm statuses, system events, configuration parameters
Material Composition:
- Industrial-grade PCB with Ethernet and serial communication circuitry
- Standard 3500 rack module chassis with RJ45 and serial connectors
Structural Features:
- Full-height module form factor for 3500 rack
- Front panel with RJ45 Ethernet port and RS232 serial connector
- Mates with the 3500 backplane for data access from all rack modules
Working Principle: The 3500/92 Communication Gateway reads all monitored data, alarm statuses, and system events from the 3500 backplane. It then packages this data according to the configured communication protocol (Modbus RTU, Modbus/TCP, or Bently Nevada proprietary) and transmits it through the Ethernet or serial interface to external systems. This enables real-time data sharing between the 3500 protection system and plant-wide control and monitoring infrastructure.
Installation Requirements:
- Install in any available slot to the right of the rack interface module
- Ethernet cable must be connected to the RJ45 port for TCP/IP communication
- RS232 serial cable must be connected for serial Modbus communication
- Network configuration must be programmed using 3500 rack configuration software
- Multiple 3500/92 modules can be installed in the same rack for redundant communication paths
Usage Precautions:
- Verify network settings match the plant network infrastructure before enabling communication
- Ensure proper RJ45 cable termination and network connectivity
- The 3500/92 is not part of the critical machinery protection trip path; its failure affects data communication but not protection functions
- Keep firmware versions compatible with the 3500 system configuration software
