Description

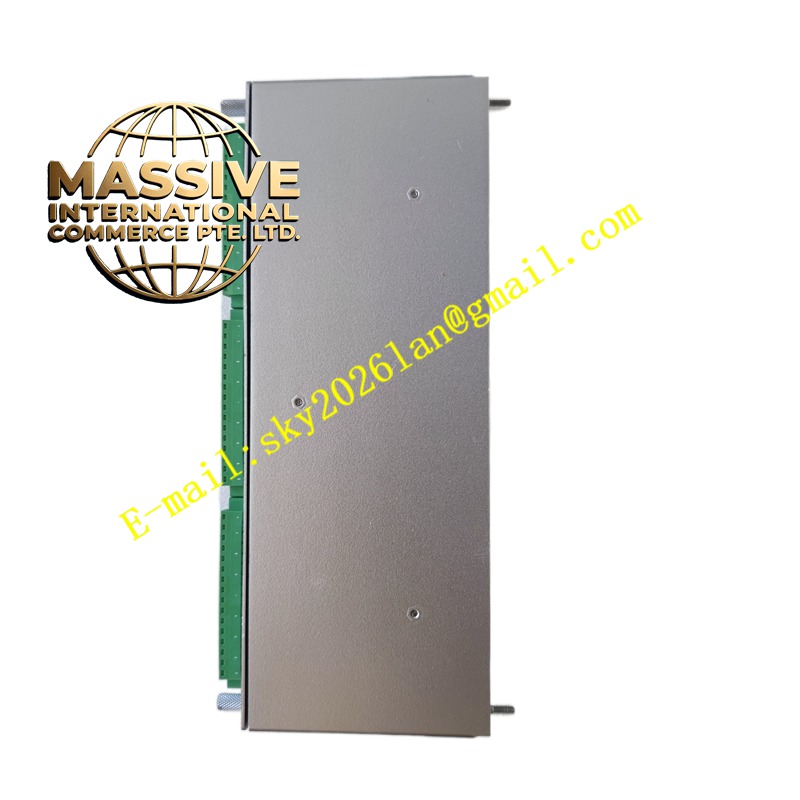

Bently Nevada 3500/92 136180-06
Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 Series |
| Module Type | Communication Gateway I/O Module |
| Communication Interfaces | Ethernet TCP/IP, Serial RS232/RS422/RS485 |
| Supported Protocols | Modbus RTU, Modbus/TCP, Bently Nevada Host Protocol |
| Data Transfer Rate | Up to 10 Mbps on Ethernet |
| Power Supply | 24V DC via rack backplane |
| Power Consumption | 5.0 to 5.6 watts depending on I/O configuration |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (I/O Module) | 241 mm x 24.4 mm x 99.1 mm |
| Weight (I/O Module) | 0.44 kg |
| Functional Safety | SIL 2 compliant |
Functional Features: This module enables comprehensive data integration by supporting multiple industrial communication protocols simultaneously. It features configurable Modbus registers that allow customization of data points transmitted to external systems. The module maintains time-stamped data records for accurate event tracking. It supports both continuous data streaming and event-triggered communication modes.
Structural Characteristics: The I/O module is constructed with industrial-grade components designed for extended reliability. It features a compact form factor optimized for rack mounting. The module includes isolation circuitry to protect against electrical interference and ground loops. Status LEDs on the front panel provide immediate visual feedback regarding module health and communication activity.
Working Principle: The module operates by polling all monitoring modules within the 3500 rack through the internal high-speed communication bus. It acquires vibration data, temperature readings, alarm states, and diagnostic information. The internal processor formats this data according to the selected communication protocol and transmits it through the appropriate physical interface to the connected host system or control network.
Installation Requirements: Install in a designated slot within the 3500 series rack. Ensure proper seating of both the main module and I/O module. Configure communication parameters using 3500 Rack Configuration Software before placing the system into service. Verify network connectivity and protocol settings match the requirements of the receiving system.
Application Scenarios: Integrated control rooms requiring centralized monitoring of multiple machine trains, distributed control systems in refineries and chemical plants, supervisory control and data acquisition systems in pipeline operations, condition-based maintenance programs requiring automated data collection, and safety instrumented systems requiring machinery protection data.
Usage Considerations: Do not install or remove the module while rack power is applied. Ensure firmware compatibility between the main module and I/O module. Verify that the total communication load does not exceed system capacity. Monitor OK LED status during initial startup to confirm proper operation. Maintain spare modules for critical applications to minimize downtime.
