Description

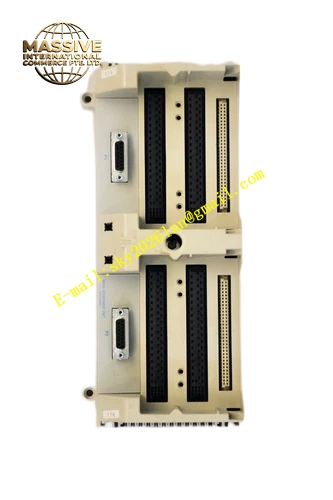

Emerson 1C31206G01
Technical Specifications:
- Brand: Emerson
- Model Number: 1C31206G01
- Product Type: Local I/O Base Assembly / Accessory Unit Base Assembly
- System Platform: Ovation DCS I/O Subsystem
- Location: Local controller cabinet
- Compatibility: Ovation I/O carrier/backplane; interfaces with Ovation I/O bus
- Power Requirements: Powered through the Ovation bus
- Operating Temperature: 0°C to +55°C, non-condensing environment
- Signal I/O Types: Analog input (4–20 mA / 0–10 V) depending on board revision and FTA pairing
- Communication Interface: Internal Ovation I/O bus via backplane; status via front-panel indicators
- Installation Method: Plug-in module; field wiring landed on external FTAs/cable sets
Functional Features:
- Form-Fit Compatibility: Drop-in fit with Ovation carriers shortens outage duration during retrofit work
- Reliable Parts Lifecycle: Stable part numbering and widely supported in utilities worldwide for streamlined spares planning
- Lower Commissioning Risk: Built-in status LEDs and proven FTA compatibility simplify loop checks and fault tracing
- Flexible Signal Handling: Pairs with different FTAs to match 4–20 mA or voltage input needs without rewiring the cabinet layout
- Stable Signal Interface: Provides a reliable interface for field signal connection in electrically noisy industrial environments
Application Scenarios:
- Power Generation: Boiler/HRSG monitoring, turbine auxiliaries, and balance-of-plant loops where stable analog input capture is critical
- Water and Wastewater: Flow, level, pH, and turbidity signal acquisition for process control and alarm strategies
- Oil and Gas: Separator skids, pipeline stations, and utility systems where Ovation serves as the site-wide DCS
- Chemical and Industrial Utilities: Steam distribution, cooling water, and environmental monitoring panels
Material Composition:
- Industrial-grade PCB backplane
- Metal mechanical housing
- Standardized Ovation module slot connectors
Structural Features:
- Plug-in base assembly compatible with Ovation I/O carriers
- Multiple module slots with keyed guides for proper alignment
- Backplane bus connections for power and data distribution
- External FTA/cable set connection points for field wiring
- Front-panel status indicators
Working Principle:
The base assembly mounts in the local controller cabinet and connects to the Ovation I/O bus through the backplane. It receives power from the Ovation bus and distributes it to all installed modules. Field wiring terminates on external field termination assemblies (FTAs) or cable sets, which connect to the personality modules seated in the base. The personality modules condition field signals and pass them through the backplane to the electronics modules, which perform A/D conversion and communicate digitized data to the Ovation controller.
