Description

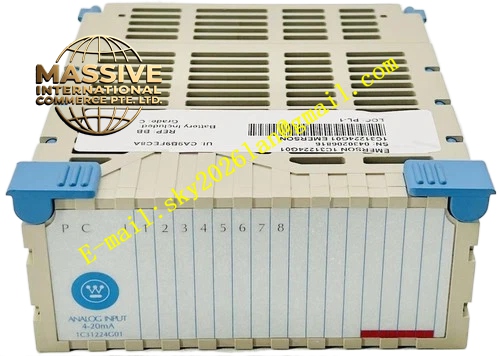

Emerson 1C31224G01
Technical Specifications:
- Brand: Emerson (Ovation / Westinghouse heritage)
- Model Number: 1C31224G01
- Product Type: Analog Input Module (EMOD)
- System Platform: Emerson Ovation DCS
- Input Signal Type: 4–20 mA current loop
- Resolution: 14-bit
- Hot-Swap Capability: Yes, with surge protection
- Status Indicators: LED status lights for operational monitoring
- Network Support: High-speed, high-capacity Fast Ethernet control and communication network
- Controller Architecture: Fully redundant Pentium PC controllers on standard bus architecture
Functional Features:
- 4–20 mA Current Input: Accepts standard industrial 4–20 mA analog signals from field transmitters
- 14-bit Resolution: Provides precise analog-to-digital conversion for accurate process measurement
- Hot-Swap Surge Protection: Allows module replacement without system shutdown while protecting against voltage transients
- Status Indicator LEDs: Visual indication of module operational state for quick diagnostics
- Fast Ethernet Integration: Supports high-speed communication with the Ovation controller network
- Redundant Controller Support: Compatible with fully redundant Ovation controller configurations
Application Scenarios:
- Power plant process monitoring (temperature, pressure, flow, level)
- Water treatment facility instrumentation signal acquisition
- Steel and metallurgical process control
- Industrial automation systems requiring precise analog signal acquisition
- Any Ovation DCS application requiring 4–20 mA input channels
Material Composition:
- Industrial-grade electronic components
- Multi-layer PCB with 14-bit ADC circuitry
- Robust modular housing for Ovation backplane insertion
- Surge protection circuitry components
Structural Features:
- Compact modular EMOD form factor compatible with Ovation I/O chassis
- Backplane connector for power, data bus, and signal routing
- Front-panel status indicator LEDs
- Terminal connections for 4–20 mA current loop wiring
Working Principle:
The 1C31224G01 receives 4–20 mA current loop signals from field transmitters through its input terminals. The module’s internal circuitry converts the analog current signal into a proportional digital value using a 14-bit analog-to-digital converter. This digital data is then transmitted to the Ovation controller via the backplane bus for processing, display, and control algorithm execution. The hot-swap circuitry ensures that removing or inserting the module does not disrupt the backplane power or communication bus.
Installation Requirements:
- Install in a compatible Ovation DCS I/O chassis slot designated for analog input modules
- Connect 4–20 mA field wiring to the appropriate terminal block or characteristic module (PMOD)
- Ensure the companion PMOD (1C31227G01) is properly installed if required by the configuration
- Verify backplane connection is secure before powering up
- Configure the channel parameters in the Ovation engineering workstation
Usage Precautions:
- Ensure field wiring polarity is correct for 4–20 mA current loop connections
- Use shielded twisted-pair cables for analog signal wiring to minimize noise
- Verify that the module is properly seated in the chassis before applying power
- Monitor status LEDs to confirm normal operation after installation
- Use the hot-swap feature only when the system is configured to support hot-swappable modules
