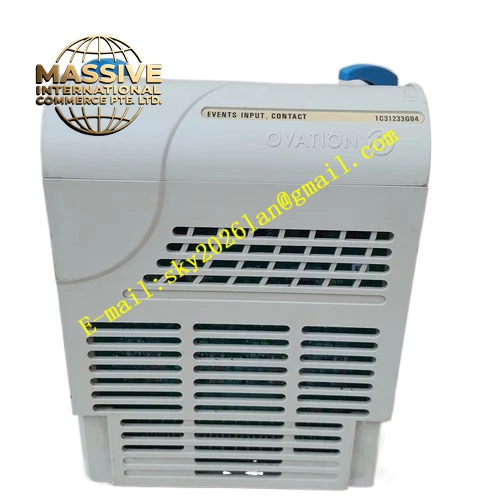

Emerson 1C31233G04

Emerson 1C31233G04

Product Introduction:
The Emerson 1C31233G04 is a digital input module within the Emerson Ovation control system series, originally developed by Westinghouse. It specializes in monitoring and recording the sequence of discrete events in industrial processes with high time resolution. The module converts field contact signals into digital data for the DCS and provides precise time-stamping of state changes, making it an essential diagnostic tool for fault analysis and process troubleshooting in power generation and process control applications.

Request Quote
Category:

Description

Emerson 1C31233G04

Technical Specifications:

  • Brand: Emerson (originally Westinghouse)
  • Product Type: Digital Input / Sequence of Events (SOE) Module
  • System Platform: Ovation DCS
  • Input Type: Dry contact input (powered by module’s internal 48V DC supply)
  • Channel Configuration: 16 isolated channels grouped into 4 independent sections
  • Input Voltage: 48V DC (supplied by the module; no external power required for contacts)
  • Logic Thresholds: Closed contact ≤100Ω (recognized as “high”); open contact ≥10kΩ (recognized as “low”)
  • Response Time: ≤5 ms with built-in debounce
  • Isolation: Channel-to-channel and channel-to-chassis at 500 Vrms
  • Power Supply: 24V DC from backplane
  • Power Consumption: Approximately 12W (includes 48V DC contact supply)
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5%–95% non-condensing
  • Protection Class: IP20 (front panel)
  • Physical Dimensions: 133 mm (W) × 127 mm (H) × 76 mm (D)
  • Weight: Approximately 0.6 kg
  • Sequence of Events Resolution: 1 millisecond

Functional Features:

  • Sequence of Events Recording: Captures and time-stamps digital input state changes with 1 ms resolution, providing precise forensic data for fault analysis after protective relay operations or equipment trips
  • 16 Isolated Digital Inputs: Four independent groups of isolated channels accept dry contact signals from limit switches, proximity sensors, pushbuttons, and protective relay contacts
  • Built-In 48V DC Contact Supply: Eliminates the need for external power sources for field contact circuits, simplifying wiring and reducing installation cost
  • Programmable Sequence Control: Allows users to define custom event sequences and trigger actions based on specific input state combinations
  • Fast Response Time: ≤5 ms response with hardware debounce ensures accurate capture of rapid transient events
  • Real-Time Diagnostics: Reports channel status, open/short circuit conditions, and module health to the DCS

Application Scenarios:

  • Power generation plants for turbine trip sequence analysis and protective relay event recording
  • Manufacturing process sequencing and interlock monitoring
  • Substation automation for breaker operation sequence recording
  • Oil and gas facility safety system event logging
  • Water treatment plant pump and valve sequencing
  • Process control systems requiring precise event correlation for fault diagnosis

Performance Parameters:

  • Channels: 16 isolated digital inputs in 4 groups
  • Response Time: ≤5 ms
  • SOE Resolution: 1 ms
  • Isolation: 500 Vrms channel-to-channel and channel-to-chassis
  • Contact Supply: Internal 48V DC

Material Composition:

  • Multi-layer printed circuit board with conformal coating
  • Industrial-grade digital input receiver ICs
  • Optocoupler isolation components
  • Internal 48V DC contact power supply circuit
  • Gold-plated backplane edge connectors
  • Modular enclosure with front-panel LEDs

Structural Features:

  • Standard Ovation I/O module form factor at 133 mm × 127 mm × 76 mm
  • Front-panel status LEDs for power, channel activity, and fault indication
  • Backplane edge connector for Ovation system bus interface
  • Keyed insertion mechanism for correct slot alignment
  • Lightweight construction at approximately 0.6 kg

Working Principle:
Field devices such as limit switches and protective relay contacts connect to the module’s 16 digital input channels. The module supplies 48V DC to the contact circuits internally. When a contact closes, current flows through the input circuit and the optocoupler isolates the field signal from the internal logic. The digital state change is captured by the module’s processor with a time stamp accurate to 1 ms. These time-stamped events are transmitted to the Ovation controller via the backplane bus, where they are stored in the Sequence of Events buffer for operator review and fault analysis. The built-in debounce circuit prevents false triggering from contact bounce.

Installation Requirements:

  • Install in a compatible Ovation I/O rack with adequate ventilation
  • Connect dry contact field wiring to the designated terminal assembly
  • No external contact power supply is required; the module provides 48V DC internally
  • Configure channel assignments and SOE parameters through the Ovation engineering tool
  • Ensure proper grounding of the rack and backplane for EMI protection
  • Verify backplane seating is secure before energizing

Usage Precautions:

  • Confirm that field contacts are dry contact type compatible with 48V DC internal supply
  • Do not apply external voltage to the contact input terminals
  • Verify contact resistance is below 100Ω for reliable “closed” detection
  • Monitor diagnostic LEDs for channel fault indications
  • Observe ESD protection protocols during handling and replacement
  • Ensure operating temperature remains within the -40°C to +70°C range
