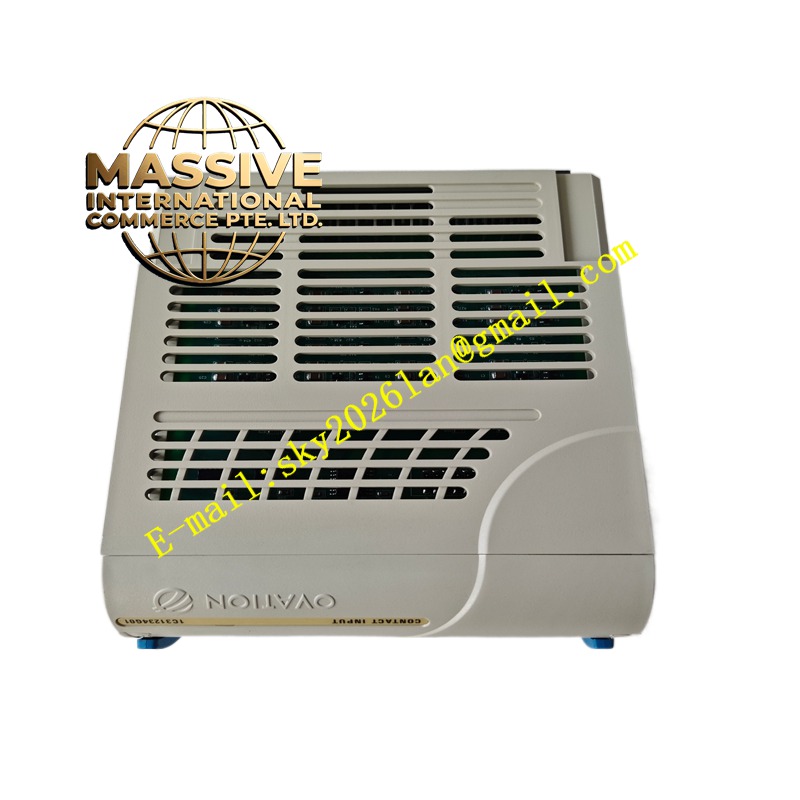

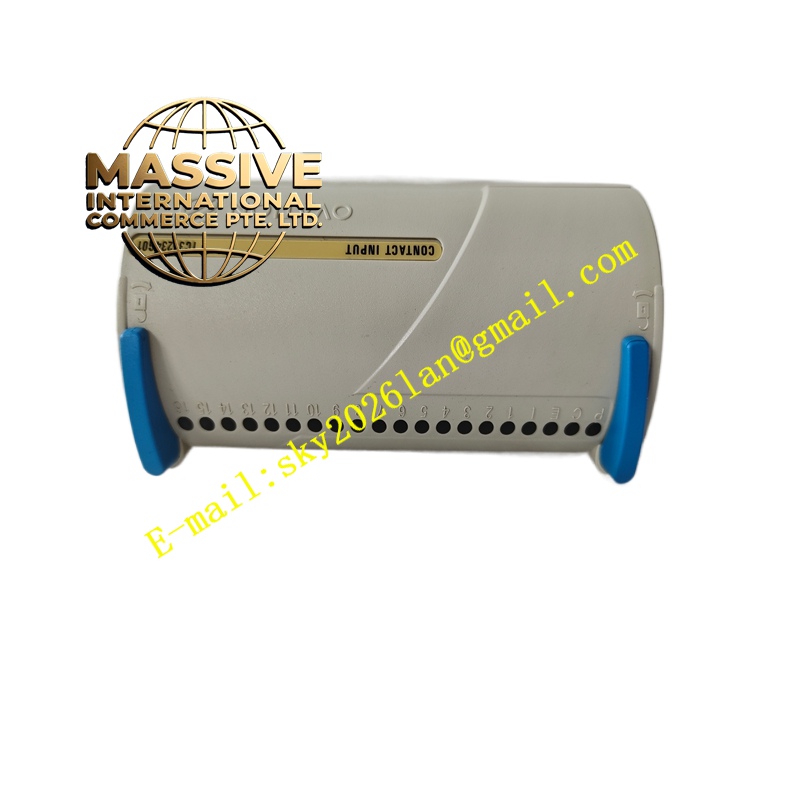

Emerson 1C31234G01
Technical Specifications:
- Brand: Emerson (Ovation System)
- Model: 1C31234G01
- Product Type: Digital Input Electronic Module
- Voltage Rating: 48VDC On-Board power
Functional Features:
- High-Speed State Detection: Rapidly detects changes in discrete field signals with minimal propagation delay.
- Robust Noise Immunity: Advanced optical isolation protects the control system from field-side electrical noise and voltage transients.
- Diagnostic Capabilities: Provides channel-level diagnostics for wire break and short circuit detection.
Application Scenarios:
Ideal for monitoring equipment run status, valve limit switches, safety interlocks, and alarm contacts in harsh industrial environments.
Performance Parameters:
- Input Threshold: Wide voltage acceptance range ensuring compatibility with various field devices.
- Isolation Voltage: High dielectric strength between field inputs and the backplane for maximum system protection.
Material Composition:
Features high-reliability opto-isolators and ruggedized electronic components housed in a durable industrial enclosure.
Structural Characteristics:
Standard Ovation module footprint with front-panel LED indicators for immediate visual confirmation of channel status and module health.
Working Principle:
Conditions discrete field voltage signals through high-speed opto-isolators, converting them to clean digital logic levels that are transmitted to the controller via the high-speed backplane bus.
Installation Requirements:
Ensure proper alignment with the backplane before insertion. Use twisted-pair wiring for field connections to minimize electromagnetic interference.
Usage Precautions:
Verify field device voltage and polarity before connection. Configure input filter times appropriately to balance noise rejection and response speed.
