Description

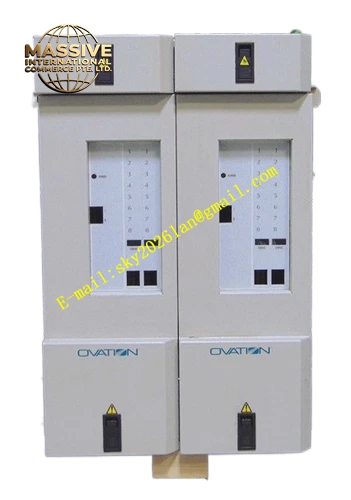

Emerson 4D33942G01
Technical Specifications:
- Brand: Emerson (originally Westinghouse)
- Model Number: 4D33942G01
- Product Type: Machine Control PLC Module / Logic Control Card
- System Platform: Ovation DCS
- Dimensions: Approximately 240 × 220 × 30 mm
- Weight: Approximately 0.8 kg
- I/O Capacity: 16 digital inputs / 16 digital outputs
- Output Type: 24 VDC / 220 VAC dry contacts
- Scan Rate: 10 ms level high-speed scanning
- Communication: Ovation dedicated bus interface to DPU
- Redundancy: Hot-swappable design
Functional Features:
- Motor Start/Stop and Reversing Control: Directly drives contactors and relays for fans, pumps, and valve motors, supporting star-delta starting
- Built-in Protection Logic: Integrated overcurrent, overload, and phase-loss protection with hardware and software dual interlocking
- PLC-Style Sequential and Interlock Control: Executes ladder logic and function block logic for equipment linkage, safety interlocks, and emergency shutdown (ESD) fault tripping
- Local/Remote Control Switching: Supports switching between local pushbutton stations and DCS operator stations with status locking and permission management
- Panel LED Indication: Displays run, stop, fault, and interlock status for convenient on-site inspection
- Seamless Ovation DCS Integration: Communicates with the DPU via the Ovation dedicated bus to upload equipment status and fault information while receiving DCS commands
- Hot-Swappable Redundancy: Supports online replacement without affecting other equipment operation
Application Scenarios:
- Power Generation: Auxiliary machinery control including fans, pumps, and damper motors
- Chemical Processing: Sequential control for batch processes and safety interlocks
- Oil and Gas: Emergency shutdown logic and equipment protection
- Water Treatment: Pump station sequencing and motor control
Material Composition:
- Industrial-grade electronic components
- Multi-layer PCB with conformal coating
- Standard Ovation card mechanical housing
Structural Features:
- Standard Ovation card form factor
- Backplane connector interface
- Front-panel status indicator LEDs
- Integrated digital I/O terminal connections
Working Principle:
The module receives digital input signals from field devices such as limit switches, temperature sensors, and vibration sensors through its 16 digital input channels. It independently executes PLC-style logic programs at high speed, processes interlock conditions, and generates output commands through its 16 digital output channels to drive contactors, relays, and motor control circuits. The module communicates with the Ovation DPU via the dedicated bus to synchronize control strategies and report equipment status.
Installation Requirements:
- Install in a compatible Ovation DCS rack slot
- Connect field wiring to the digital I/O terminals
- Establish communication with the DPU via the Ovation bus
- Ensure proper grounding and shielding
Usage Precautions:
- Verify output voltage and current ratings match connected field devices
- Configure interlock logic before commissioning
- Perform regular function testing of protection logic
- Maintain configuration backups for disaster recovery
