Description

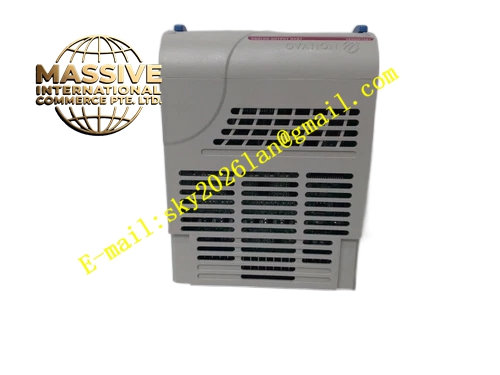

Emerson 5X00241G01
Technical Specifications:
- Brand: Emerson
- Model Number: 5X00241G01
- Product Type: Processor Module / Ovation DCS Controller Board
- System Platform: Emerson Ovation DCS
- Power Supply: Backplane-supplied DC power, typically 5 VDC
- Dimensions: Approximately 6U plug-in card, 233 × 160 mm
- Weight: Approximately 0.38 to 0.6 kg
- Operating Temperature: 0°C to +60°C
- Signal I/O: No direct field I/O; interfaces via controller backplane and system network
- Communication Interfaces: Backplane bus, Ovation controller network ports (10/100 Mbps), service/maintenance port
- Processor: 64-bit processor for complex control algorithm handling
- Communication Protocols: Ethernet, RS-485, CAN interfaces
Functional Features:
- Stable Control Logic Execution: Handles control logic execution and task scheduling with consistent scan times for critical process loops
- Backplane-Powered Design: Draws regulated DC from the controller chassis, eliminating the need for external power feeds and simplifying cabinet wiring
- Rack Plug-In Format: Slide-in installation with keyed connectors reduces mis-seating and accelerates module swapovers
- Redundant Architecture Support: Pairs in A/B controller setups to minimize single points of failure
- Remote Monitoring and Diagnostics: Supports remote monitoring to enable timely identification and resolution of issues, reducing downtime
- Modular Expansion: Supports addition of I/O modules, communication modules, and peripheral devices for flexible system configuration
- Field-Proven Compatibility: Works within both legacy and modernized Ovation systems
Application Scenarios:
- Power Generation: Thermal, combined-cycle, and balance-of-plant control
- Oil and Gas: Compressor stations, utility systems, and upstream water treatment
- Water and Wastewater: Clarifiers, filtration, and chemical dosing
- Pulp and Paper: Continuous process lines and utilities
- Chemical Processing: Reactor and distillation column control
Material Composition:
- Industrial-grade 64-bit processor components
- High-quality multi-layer PCB
- Modular enclosure with keyed backplane connector
Structural Features:
- 6U plug-in card form factor
- Slide-in rack-mounted installation with front retention
- Backplane bus connector
- Ovation controller network ports
- Service/maintenance port
- Status indicator LEDs
Working Principle:
The processor module executes control algorithms and task scheduling through its 64-bit processor, reading process data from I/O modules via the Ovation backplane bus, performing real-time control calculations, and distributing output commands to actuator channels. It communicates with other system components through the Ovation controller network at 10/100 Mbps and supports redundant operation by synchronizing with a paired processor module for seamless failover.
Installation Requirements:
- Install in a clean, ventilated control cabinet
- Follow 6U rack slotting and grounding practices
- Ensure stable backplane power supply
- Proper chassis bonding to avoid noise issues
- Use ESD-safe handling procedures during insertion and removal
Usage Precautions:
- Verify firmware compatibility with the existing Ovation system version
- Confirm redundant pair synchronization before commissioning
- Use antistatic wrist straps during module handling
- Perform regular diagnostic checks via the service port
- Back up controller configuration before firmware updates
- Schedule firmware updates during planned outages
