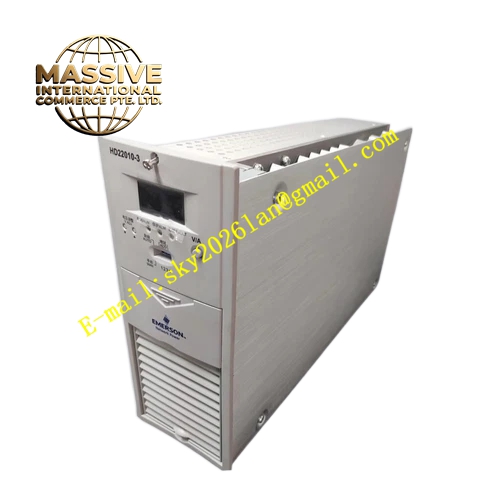

Emerson HD22010-3
Technical Specifications:
- Brand: Emerson
- Model Number: HD22010-3
- Product Type: DC Panel Charging Module
- Input Voltage Range: 323 V to 475 V (three-phase, three-wire)
- Input Current: ≤10 A
- AC Input Frequency: 45 Hz to 65 Hz
- Power Factor: ≥0.92 (up to 0.94)
- Module Efficiency: ≥92%
- Output Voltage Range: 176 V to 320 V DC (220 V nominal system); 198 V to 286 V DC / 99 V to 143 V DC (110 V nominal system)
- Rated Output Current: 10 A
- Maximum Output Current: 11 A (110% of rated)
- Output Constant Current Range: 10% to 110%
- Voltage Regulation Accuracy: ≤±0.5%
- Current Regulation Accuracy: ≤±0.5%
- Ripple Coefficient: ≤0.1%
- Current Sharing Imbalance: ≤±5% (typical 3% at 50%–100% load)
- Soft Start Time: 3 to 8 seconds
- Acoustic Noise: <55 dB
- Dimensions: 413 mm × 110 mm × 257 mm
- Weight: 8 kg
- Cooling Method: Natural cooling and forced air cooling combined, dust-proof design
- Certifications: CE, RoHS
Functional Features:
- Input Over/Under-Voltage Protection: Module protects and shuts down DC output when input voltage exceeds safe limits; auto-recovers when voltage returns to normal range
- Output Over-Voltage Protection: Shuts down output when voltage exceeds 325±5 VDC; requires power cycle to reset
- Output Under-Voltage Alarm: Triggers alarm when output drops below 198±1 VDC; auto-recovers when voltage restores
- Short-Circuit Current Foldback: Output current reduces to no more than 40% of rated current during short circuit; auto-recovers when fault clears
- Phase Loss Protection: Limits power output to half-load capability when input phase loss is detected
- Over-Temperature Protection: Shuts down when internal temperature exceeds 80°C; auto-recovers at 60°C
- Primary Over-Current Protection: Protects against rectifier-side over-current; requires power cycle to reset
- Fan Temperature Control: Three-speed fan control (off, half, full) based on combined temperature and current monitoring
- Fault Code Display: LED display shows fault codes for rapid troubleshooting
- RS485 Communication: Communicates with host monitoring system for remote voltage/current readback, alarm reporting, and command execution
- Hot-Swappable: Supports online module replacement without system shutdown
Application Scenarios:
- 35 kV to 330 kV substation DC power systems
- Power plant auxiliary DC supply
- Hydroelectric station control power
- Petrochemical facility emergency DC power
- Metallurgical plant DC distribution
- Railway signaling and traction power supply
- Any industrial facility requiring reliable 220 VDC or 110 VDC battery charging
