Product Introduction:
The Emerson KJ2002X1-BA1 is a safety-rated Input/Output (I/O) module within the DeltaV CHARMs (Characterized, Ready-to-Install Modules) series. It serves as a critical bridge between field devices — such as emergency stop buttons, flame detectors, pressure switches, solenoid valves, and shut-off valves — and the KJ2001X1-BA1 intelligent logic solver in a Safety Instrumented System (SIS). The module collects safety-related input signals from the field and executes control instructions from the logic solver to trigger safety actions such as emergency shutdowns and material supply cutoffs.

Request Quote
Category:

Description

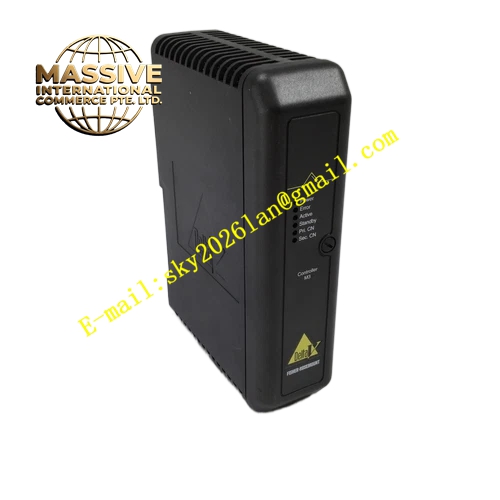

Emerson KJ2002X1-BA1

Technical Specifications:

  • Brand: Emerson
  • Model Number: KJ2002X1-BA1
  • Product Type: Safety Input/Output Module (CHARMs Series)
  • System Platform: Emerson DeltaV SIS
  • Safety Integrity Level: SIL 3 (per IEC 61508/61511)
  • Power Requirements: Backplane powered via DeltaV carrier; field circuits typically 24 VDC
  • Operating Temperature: 0°C to +55°C (cabinet ambient), non-condensing
  • Signal I/O Types: Safety-rated discrete 24 VDC inputs/outputs; multi-channel
  • Communication Interface: DeltaV backplane interface; no external fieldbus port on the module body
  • Channel Isolation: ≥500 Vrms galvanic isolation between channels
  • Response Time: ≤10 ms
  • Approvals: CE, UL/cUL
  • HS Code: 8537.10

Functional Features:

  • SIL 3 Safety Design: Meets the highest safety integrity level requirements for high-risk interlock control scenarios
  • Galvanic Isolation: Electrical isolation between channels prevents signal interference and single-point fault propagation
  • Redundancy Support: Supports power redundancy and channel redundancy to maintain operation during single-point failures
  • Hot-Swappable: Allows online module replacement without system shutdown, minimizing maintenance impact on production
  • Intelligent Diagnostics: Real-time monitoring of module and connected equipment status including channel faults, open circuits, and short circuits; reports diagnostic information through the DeltaV system
  • Loop Integrity Testing: Automatically detects signal line continuity and provides early warning of potential faults
  • Per-Channel Status LEDs: Front-panel indicators for power, status, and channel health enable rapid fault identification

Application Scenarios:

  • Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS)
  • Fire & Gas (F&G) detection and shutdown interlocks
  • Burner Management Systems (BMS) in refining and power generation
  • Chemical and pharmaceutical process safeguards with proof-tested loops
  • Offshore platforms and pipelines where 24 VDC safety I/O is standard practice

Material Composition:

  • Industrial-grade electronic components with safety-rated relay and solid-state output architecture
  • Multi-layer PCB with safety logic interface circuitry
  • Robust modular housing compatible with DeltaV CHARMs carrier system

Structural Features:

  • Standard single-slot DeltaV module form factor suitable for 19-inch control cabinets
  • Front-panel status and channel health LEDs
  • Backplane connector for power and signal integration
  • Terminal block assembly for field wiring connections
  • Rotary keying system ensures compatibility between I/O cards and terminal blocks

Working Principle:
The KJ2002X1-BA1 receives discrete safety input signals from field sensors through its input channels and transmits them to the KJ2001X1-BA1 logic solver via the DeltaV backplane. The logic solver evaluates the inputs against programmed safety logic (AND/OR/NOT interlock conditions) and issues control commands back to the module. The module then drives its output channels to activate field actuators — such as solenoid valves, shut-off valves, or audible/visual alarms — executing the required safety action. Galvanic isolation between channels prevents fault propagation and ensures signal integrity throughout the safety loop.

Installation Requirements:

  • Install on the appropriate DeltaV safety I/O carrier/baseplate in a single slot with terminal block assembly
  • Maintain cabinet ambient temperature within 0°C to +55°C, non-condensing
  • Remove field power before removing or connecting the device
  • Set the rotary keying system to match the I/O card and terminal block configuration
  • Perform a complete I/O loop assessment on all energy-limited nodes before commissioning
  • Follow Emerson document 12P2046 “DeltaV Scalable Process System Zone 2 Installation Instructions” for hazardous area installations

Usage Precautions:

  • Only one unit at a time shall be removed with system power energized
  • When hot-swapping, ensure the system uses a KJ1501X1-BC1 System Dual DC/DC Power Supply operating on 24 VDC or 12 VDC input power with primary circuit wiring inductance less than 23 µH
  • A terminal block fuse shall not be removed with field power energized for non-sparking circuits
  • The unit contains no user-serviceable parts and shall not be disassembled
  • Calibration is not required for this module
  • Perform periodic functional proof-tests as required by the applicable safety integrity level
