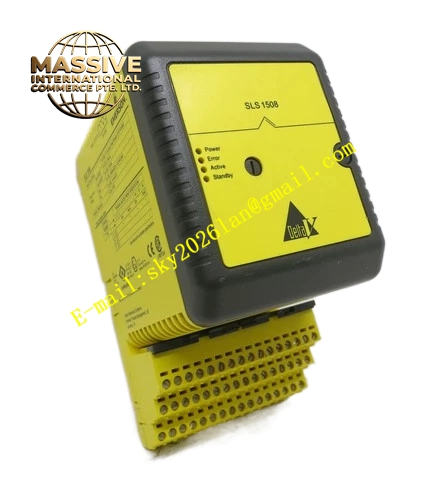

Emerson KJ2201X1-BA1

Emerson KJ2201X1-BA1

Product Introduction:
The Emerson KJ2201X1-BA1 is a Logic Solver module belonging to the SLS1508 system within the Emerson DeltaV safety instrumented system platform. It serves as the central processing element that receives sensor inputs, executes safety logic algorithms, and generates safety output commands to protect personnel, equipment, and the environment in critical process applications.

Request Quote
Category:

Description

Emerson KJ2201X1-BA1

Technical Specifications:

  • Brand: Emerson
  • Model Number: KJ2201X1-BA1
  • Product Type: Logic Solver — SLS1508
  • System Platform: Emerson DeltaV SIS / SLS1508
  • Input Power: 24 VDC, 1A
  • Operating Temperature: -40°C to +70°C
  • Shock Rating: 10G sine wave, 5 Hz, 11 ms duration
  • Vibration Rating: 1 mm peak-to-peak (5 Hz to 16 Hz); 0.5g (16 Hz to 150 Hz)
  • Airborne Contaminants: ISA-S71.04 G3 class
  • Relative Humidity: 5% to 95% (non-condensing)

Functional Features:

  • Safety Logic Execution: Executes programmable safety logic for process protection
  • Multiple Connection Ports: Provides various port types to accommodate different signal and cable types
  • Sensor Integration: Connects sensors, actuators, cables, and other devices for signal transmission and control
  • Programmable: Configurable to meet different application requirements and safety logic
  • High Reliability: Designed for stable operation in harsh industrial environments with dust, water, and high-temperature resistance
  • Signal Conversion: Converts analog signals to digital signals for control system processing

Application Scenarios:

  • Vibration monitoring for rotating equipment protection
  • Control system integration in process automation
  • Signal conversion and processing
  • Power industry equipment monitoring
  • Oil and gas production process safety
  • Manufacturing production line safety monitoring

Material Composition:

  • Industrial-grade electronic components
  • Multi-layer PCB with safety logic processing circuitry
  • Robust modular housing with dust, water, and high-temperature resistance

Structural Features:

  • Standard SLS1508 modular form factor
  • Multiple connection ports for sensors, actuators, and communication
  • Backplane connector for system integration
  • Status indicator LEDs for operational monitoring
  • Modular design supporting easy replacement

Working Principle:
The KJ2201X1-BA1 receives process variable signals from field sensors through its input connections. The internal processor executes the programmed safety logic algorithms, evaluating the sensor inputs against configured safety setpoints
