Product Introduction:

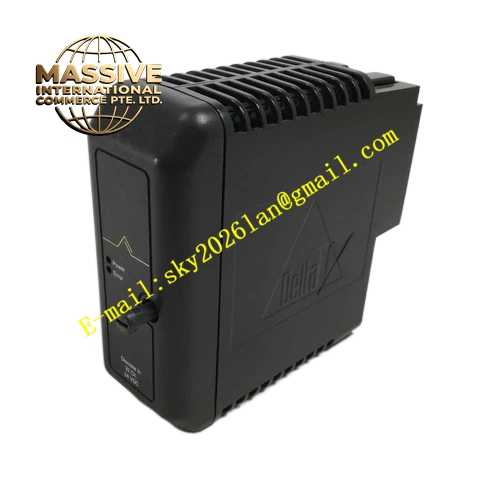

The Emerson KJ2222X1-BA1 is a SISNet distance extender module designed for the Emerson DeltaV Safety Instrumented System (SIS). It extends the communication range of the SISNet network, enabling reliable data transmission between SIS components over longer distances. The module ensures signal integrity and system reliability in safety-critical applications.

Request Quote
Category:

Description

Emerson KJ2222X1-BA1

Technical Specifications:

  • Brand: Emerson
  • Model Number: KJ2222X1-BA1
  • Product Type: SISNet Distance Extender
  • System Platform: Emerson DeltaV SIS
  • Control Principle: Open-loop
  • Dimensions: 200 mm × 20 mm × 300 mm
  • Voltage: 220V
  • Certification: 3C
  • Product Name: Module

Functional Features:

  • Network Extension: Extends the physical reach of the SISNet communication network
  • Signal Integrity: Maintains signal quality over extended distances
  • SIS Compatibility: Designed specifically for DeltaV SIS system integration
  • Industrial Robustness: Built for reliable operation in demanding industrial environments
  • Modular Design: Easy installation and maintenance within the DeltaV SIS architecture

Application Scenarios:

  • Safety instrumented systems requiring extended SISNet communication distances
  • Large-scale process plants where SIS components are distributed over wide areas
  • Petroleum and chemical plants with extensive safety system coverage
  • Power generation facilities with distributed safety monitoring
  • Any DeltaV SIS installation requiring reliable long-distance network connectivity

Material Composition:

  • Industrial-grade electronic components
  • Multi-layer PCB with SISNet communication circuitry
  • Robust modular housing for industrial cabinet mounting

Structural Features:

  • Standard modular form factor for DIN-rail or panel mounting
  • SISNet communication ports for network connection
  • Status indicator LEDs for communication monitoring
  • Backplane or terminal connections for power and signal integration

Working Principle:
The KJ2222X1-BA1 receives SISNet network signals and regenerates or amplifies them to extend the communication distance. It acts as a signal repeater that maintains data integrity while allowing SISNet nodes to be located farther apart than the base network specification permits. This ensures reliable safety communication across large installations.

Installation Requirements:

  • Install the module in a suitable DIN-rail or panel mounting location
  • Connect SISNet network cables to the appropriate ports
  • Ensure proper power supply connection
  • Verify the extended network topology complies with SISNet specifications
  • Maintain environmental conditions within the module’s operating range

Usage Precautions:

  • Do not exceed the maximum extension distance specified for the SISNet network
  • Verify network signal quality after installation
  • Ensure proper cable shielding and routing for extended network segments
  • Do not disassemble the module as it contains no user-serviceable parts
  • Follow all safety system installation and commissioning procedures
